Hitec 61100 Energy Propel 3508/30A ESC / 400KV CCW Brushless Motor : FPV

For 500-700 size quadcopters using 13-15" propellers
Motor and 30A ESC in one component, lightweight and space saving
2-4S LiPo compatible
Flashed with BL Heli updateable firmware that uses Active Braking
(damping light) for improved throttle response
ONESHOT communication protocol for fast refresh rates
Simple 14 gauge wiring harness eliminates failure points
Pre-tinned motor leads
Built-in reversing switch
One year limited warranty through Hitec beginning at date of
purchase

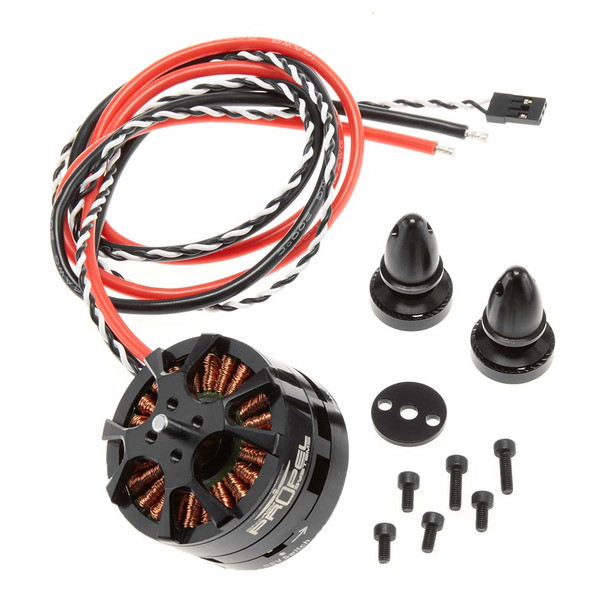

EP3508/30 Counter Clockwise Rotating Motor with ESC, Wiring
Harness, two Aluminum Spinners with Prop Adapters, Instruction
Manual

Battery leads to match quadcopter battery

Stator Diameter: 1.4" (35.1mm)
Stator Height: 0.31" (8mm)
Poles: 12N 14P
Kv Rating: 400
Maximum Watts: 340
ESC Continuous Current: 30A
ESC Max Current: 40A
Resistance: 0.3712 ohms
Idle Current: 0.35A
Reverse Switch: Yes
BEC Output: No
Input Voltage: 2-4S LiPo
Receiver Cable Length: 11.8" (300mm)
Rotation: Counter Clockwise, reversible
Shaft Length: 0.24" (6mm)
Shaft Diameter: 0.16" (4mm)
Motor Length Including Shaft: 1.6" (41.4mm)
Motor Length Not Including Shaft: 1.4" (35.4mm)
Motor Diameter: (42mm)
Distance from Mounting Hole Centers: 0.98" (25mm)
Mounting Hole Diameter: 0.12" (3mm)
Weight: 4.76oz (135g)
