Castle Creations Mamba X 1/10 Sensored 25.2V Waterproof ESC & 1406-7700KV Motor

ESC Technical Specs:
Input Voltage Range:    MIN: 2S LiPo
MAX: 6S LiPo (25.2V)
BEC Specifications:    Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment:    Waterproof* design allows for use in nearly any environment.
Brake:    Proportional
Reversible:    Yes, but may be disabled for racing.
On/Off Switch:    Yes
Cooling Fan:    Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size:    Length: 2.14" (54.4mm)
Width: 1.39" (35.2mm)
Height: 1.18" (30.0mm)
Weight (with wires):    3.56 oz. (101g)
Connectors:    4.0mm female bullets for motor connection.
Items Needed for Operation:    Battery Connector required, Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended.
Product Use Statements:

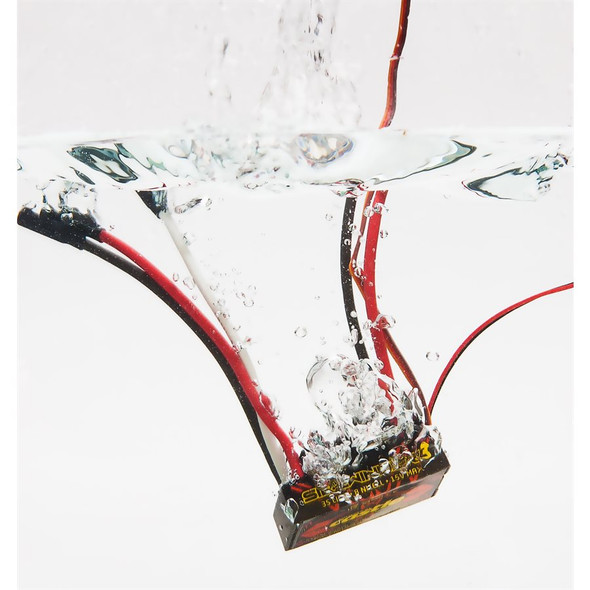

*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. T Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Max. Recommended Vehicle Weight:    Up to 4lbs, with batteries, ready-to-run with included 1406 - 7700kv motor.
Programmability:    Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software.
Telemetry Link Capable:    Yes
Tech Notes:
Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
Applying voltages higher than 25.2V will cause irreparable damage to ESC.
We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs.

Motor Technical Specs
Input Voltage Range:    2S LiPo
Kv:    7700
Max. RPM:    100,000
Size:    Length: 49.5mm
Diameter: 36mm
Weight (w/wires):    189g / 6.7oz
Shaft Size:    Length: 15mm
Diameter: 1/8" (3.17mm)
Mounting Hole Specifications:    M3 @ 25mm
Cooling Fan:    Optional, coming soon!
Connectors:    4mm male Castle Bullet Connectors
Application Guidelines:    Ideal for 1/10th scale on-road cars for 2S use.
Lighter off-road 1/10th stadium trucks and buggies with conservative gearing.
NOT for use in 2WD or 4WD short course trucks.
Click the gearing chart at the bottom of the page under Resources for more details.
Max. Recommended Vehicle Weight:    Up to 4lbs
Tech Notes:
Running modes: SMARTSENSE™, Sensored only

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
