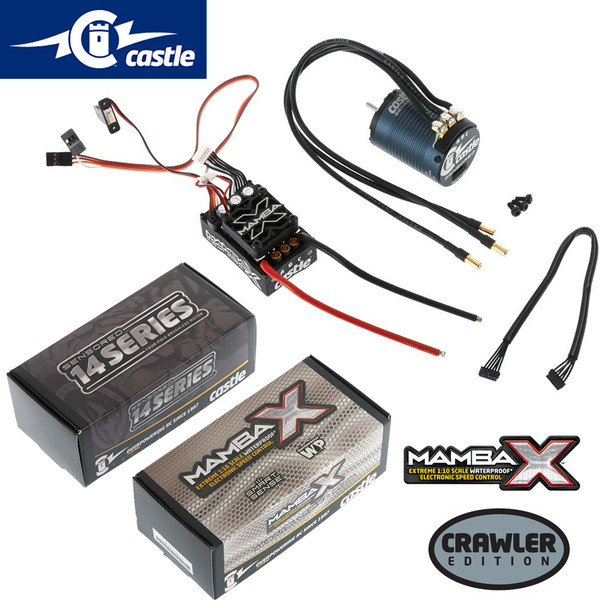

Castle Creations Mamba X 1/10 25.2V WP ESC w/ 1406-2280kV Brushless Cralwer Motor Combo

Low speed crawling or trail running!

• Wide, 2S to 6S input voltage range
• Sensored motor support (Castle X-Series Sensor Harness included)
• Waterproof
• 8A, adjustable BEC (5.2V-8.0V)
• Data-logging
• Rugged CNC aluminum case
• Castle Link programming support
• SmartSense™
• Integrated capacitors
• Removable 30mm cooling fan
• Integrated 4mm bullet connectors
• 12 AWG power wires
• Waterproof switch
• Audible alerts

• Improved, 4-pole, 12-slot design for higher efficiency and lower heat
• QUIETSENSE™ technology shields sensors from motor coil magnetic field
• Uniform timing and torque in both directions automatically
• Rebuildable design for easier front end bell/bearing assembly or rotor/shaft assembly replacement
• ROAR standard sensor port and labeled connections
• Updated modern and sleek design

​​This is the Castle Creations Mamba X Extreme 1/10 scale Waterproof ESC

Ideal for low speed crawling or trail ruinning in vehicles
weighing up to 9lbs (4.1kg) on 2S to 4S LiPos, can also be used in
more aggressive setups such as rock racing and extended hill
climbing on vehicles up to 5lbs (2.3kg)

ESC;
2S - 6S input voltage range
Smartsense uses motor's sensors for smooth starts, excellent torque
and low-speed drivability - then transitions to the sensorless
mode with electronic timing, Smartsense automatically advances
timing for peak performance during all driving conditions
On-the-fly adjustments can be made through the AUX wire once enabled
in Castle Link, then settings can be tuned from transmitter while
driving
Recordable real-time data such as RPM, battery current and voltage,
ESC and motor temperature, throttle input and more
Audible alerts
CNC aluminum case
12AWG high strand count silicone insulated battery wires

Motor;
4 pole 12 slot design for high degree of efficiency and less heat
SMARTSENSE uses motor's sensors to provide smooth starts, excellent
torque and low-speed drivability-once motor is turning it
transitions to sensorless mode
QUIETSENSE technology shields sensors from magnetic field noise
generated from the motor coils keeping motor and ESC in sync at all
times
ROAR standard sensor port and labeled connections
High performance 0.2mm steel lamination stacked stator
CNC machined anodized 6061 T-6 aluminum motor can and endbells
Rebuildable design allows replacement of front end bell/bearing
assembly or rotor/shaft assembly
One year limited warranty through Castle Creations beginning at date
of purchase

Mamba X Extreme 1/10 scale Electronic Speed Control
1406-2280Kv Sensored Brushless Crawler Motor
8.3" (210mm) length Sensor Wire for Sensored Operation
Castle Sensor Harness Adapter
Coupon for free Castle Link USB Adapter
Driver's Ed and Quick Start Guides
Castle Decal Sheet

Battery connectors to match selected battery

ESC, CSEM9500:
Input Voltage Range: 2S - 6S LiPo
BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Programmable: Fully programmable with Castle Link USB Adapter, and
downloadable Castle Link Windows software
Telemetry Link Capable: Yes
Brake: Proportional
Reverse: Yes, may be disabled for racing
Cooling Fan: 1.2" (30mm) removable
Dimensions: 2.14 x 1.39 x 1.18" (54.4 x 35.2 x 30mm)
Max Recommended Vehicle Weight: 9lbs (4kg) with batteries, ready to
run

Motor, CSEC6900
Input Voltage Range: 2-4S LiPo
Kv: 2280
Max RPM: 100,000
Length: 1.9" (49.5mm)
Diameter: 1.4" (36mm)
Weight: 6.9oz (197g)
Shaft Length: 0.59" (15mm)
Shaft Diameter: 1.8" (3.17mm)
Mounting Hole Specs: M3 @ 25mm
Connectors: 4mm Male Castle Bullet Connectors attached to 13 gauge
wire

Sensor Wire Length: 8.3" (210mm)​
