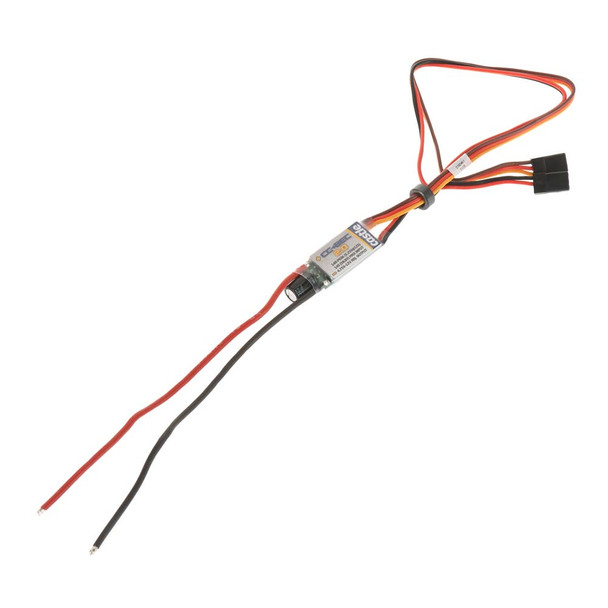

Castle Creations CC-BEC 2.0 14A MAX Voltage Regulator 010-0154-00

From the trusted manufacturer of BECs comes the next generation of voltage regulators. Designed and assembled in the USA1, Castle Creations’ CC BEC 2.0 gives users higher voltage ranges in two unique packages. For pilots there is a smaller, lightweight (0.7 oz.) design capable of 14 amps peak, perfect for sport flying, helicopters, and UAVs. Racers, crawlers, and other splashers can now integrate a 15 amp peak power regulator in a waterproof (WP), CNC machined, aluminum case. Both versions handle up to an impressive 14S without brake enabled or 12S with brake.

For sport flying, helicopters and UAVs
Wide input voltage range of 2S-14S (6V-58.8V)
15 amp 5.25V @ 12S peak output current
4.75-12V adjustable output voltage
Non-waterproof

CC-BEC 2.0 BEC Voltage Regulator

Length: 1.69" (43mm)
Width: 0.56" (14mm)
Height: 0.32" (8mm)
Weight: 0.7oz (21g) w/full length wires, wires may be shortened to
save weight
Peak Current: 14A depending on input and output voltage
Continuous Output Current:
4.75-7V Output: 9A
7.25-8.5V Output: 8A
8.75-10V Output: 7A
10.25-12.0V Output: 6A
Adjustable Output Voltage: 4.75-12V (adjustable via Castle Link-
sold separately)
Default Setting: 5.25V
Max Voltage:
Surface, 12S (50.2V)
Air (no brake): 14S (58.8V)
Air (w/brake): 12S (50.2V)

​The CC BEC 2.0 features heavy duty, dual output wires that will provide clean power to sensitive radio equipment. Castle Link2 can be used to set the output from 4.75 to 12 volts and power today’s power hungry servos, cameras, and other accessories. Do it right the first time, invest in the CC BEC 2.0 to protect expensive electronics for the long haul.

Note: CC BEC 2.0 should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.
