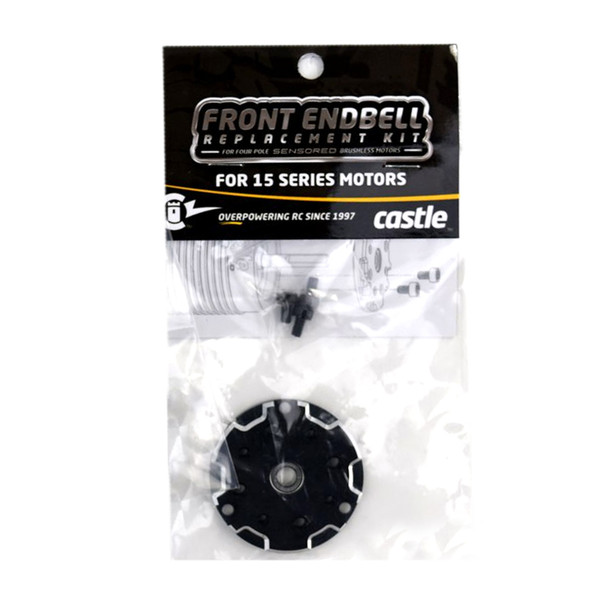

Castle Creations 011-0134-00 15 Series Motor Front Endbell Replacement Kit

FOR 15 SERIES SENSORED MOTORS

PACKAGE CONTAINS:

Front Endbell with Ball Bearing
Endbell Screws M3 x 5mm (Qty. 3)
Instructions:
Remove front endbell screws using a 2.5mm hex key.
Pull damaged endbell away, keeping shaft and endbell concentric. Rotating endbell may help break it free.
Replace with the new endbell. The rotor will be magnetically attracted to the stator, so the endbell must force the rotor back to the center.
Apply removable threadlocker to threads of the new screws and torque until snug.
