E-Flite

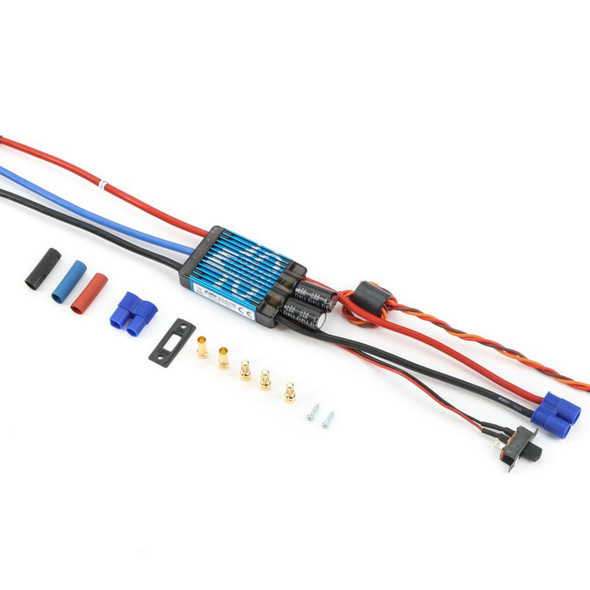

E-flite EFLA1040LB 40-Amp Lite Pro Switch-Mode BEC Brushless ESC (V2) Speed Control

(No reviews yet) Write a Review
SKU:
EFLA1040LB
UPC:
605482079171
Condition:
New
MSRP: $84.99
$80.99
— You save $4.00

Description

Product Description

Key Features

  • Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds)
  • 5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required)
  • Stronger BEC for support of most 3-axis stabilization systems
  • Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
  • 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
  • Programmable motor braking
  • Safe power-arm mode prevents accidental starts
  • Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
  • Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
  • Programmable soft start for helis and airplanes
  • Auto motor shut down if signal is lost or there is interference
  • Programmable timing—5 user-selectable ranges, use with a large variety of brushless motors

Overview

The E-flite® 40-Amp Lite Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

Specs

Amperage: 40-60
BEC Voltage: 2.5A continuous
Brake: Yes
Continuous Maximum Current: 25 - 50A
Height: 0.47 in (12mm)
Input Connector Types: 13 AWG with E-flite EC3 Connector
Input Voltage: 3S-6S LiPo or 9- to 18-cell Ni-MH/Ni-Cd
Length: 2.6 in (66mm)
Momentary Peak Current: 55A
Output Connector Types: 16AWG with 3.5mm Female Gold Bullet Connectors
Type: Brushless
Weight: 1.7 oz (48g)
Width: 1.2 in (31mm)
