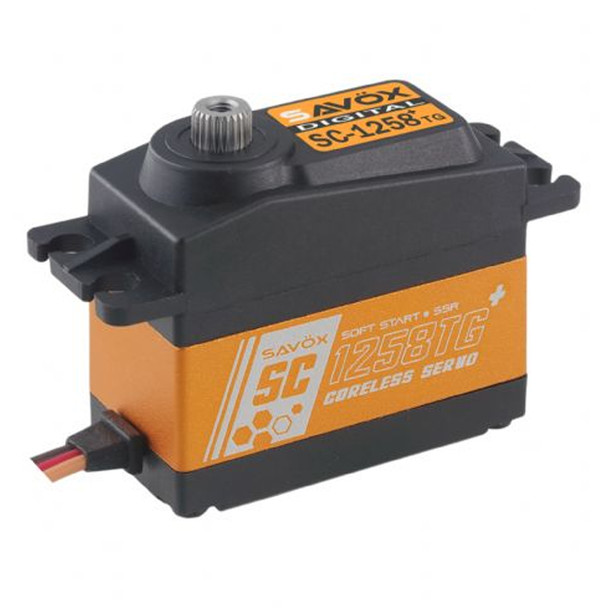

Savox SC-1258TG PLUS Coreless Titanium Gear Digital Servo w/Soft Start SSR Mode

The the newly updated Savöx SC-1258TG v2 is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.

Features:
NEW! Softstart Function
NEW! Sanwa SSR compatible
Extremely strong titanium gears ensure long-life, durability and light weight
Ideal for CCPM on 600 and 700 class heli & steering servo on 1/10 scale buggies
Aluminum middle case allows for cooler operating temperatures

Specifications:
Torque @ 6V: 12kg/cm
Speed @ 6V: 0.08 sec/60 deg
Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
Weight: 64g

Technical Details:
Operating Temperature: -10° to 50°C
Running Current (no load): 100mA @4.8V, 120mA @6.0V
Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
