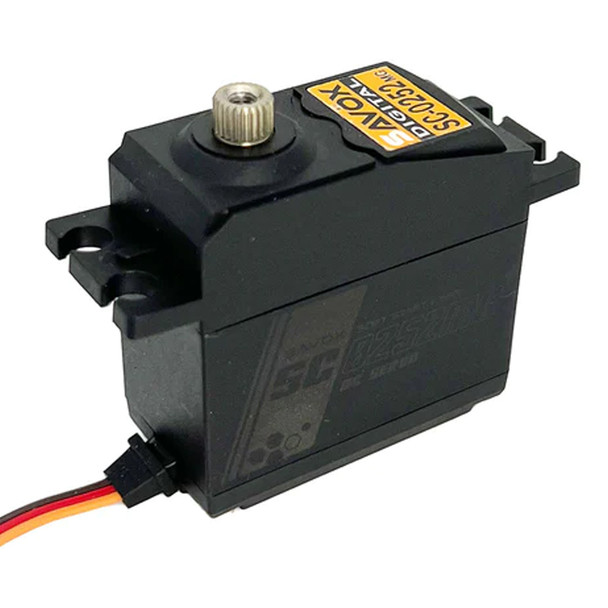

Savox SC0252MGP Standard Digital Servo w/ Soft Start, 0.19sec / 145oz @ 6.0V

The Savox SC-0252MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features:

Metal gear train ensures durability under harsh situations.
Higher torque output than standard servos.
Ideal for 30-60 size aircraft, and some car appliations.
Specifications:

Torque @ 4.8v - 7.2kg/100.0oz-in
Torque @ 6v - 10.5kg/145.8oz-in
Speed @ 4.8v - 0.23 sec/60 deg
Speed @ 6v - 0.19 sec/60 deg
Dimensions L x W x H (mm): 40.7 x 19.6 x 39.4
Weight: 49.0g

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 300mA @4.8V, 330mA @6.0V
Stall Current (at locked): 1400mA @4.8V, 1700mA @6.0V
Idle Current: 6mA @4.8V, 6mA @6.0V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 120° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 164° (800 → 2200 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
