Xnova

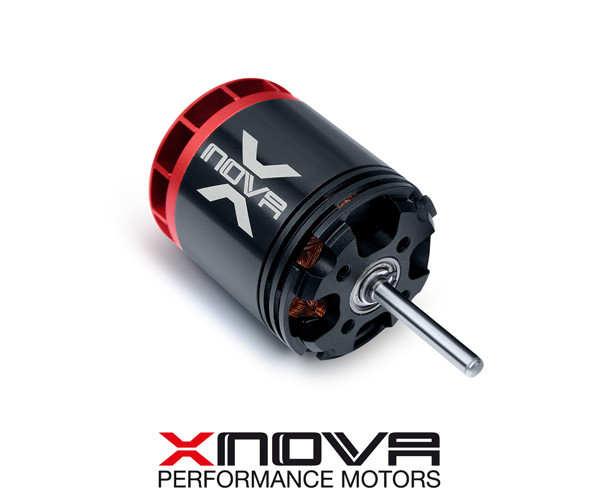

Xnova 2618-1860KV 10P (shaft B) 3mm Brushless Motor 320-360mm Bladesize Heli
(No reviews yet)
Write a Review
- SKU:
- XN2618-1860-B
- Condition:
- New
Description
Xnova brushless high performance outrunner motor designed for extrem 3D, 320-360mm bladesize helicopter where highest power to weight ratio is important. Gaui X3, KDS-CHASE-360, T-rex 450 , Forza 450 and so on (at some type of helicopter small frame modifications may be necessary).
- High qual. Neodym Mag.heat res. up to 150 degree C.
- Specialized wires,heat resistance up to 250 degree C.
- Precise balanced.
- High performance stator metal sheet.
- High quality NMB bearings.
- Marked leading high effiency up to 88%.
- Cooler running.
- Superb quality and machining of CNC parts.
- Improved torque and power output
Designed for extrem 3D , 320-360mm bladesize helicopter where highest power to weight ratio is important.
| Slots & Poles | 12n10p |
| Winding T | 10D |
| rpm/V | 1860 |
| Volt (V) | 10 / 22.2 |
| Io(A) | 2.5 / 4.2 |
| Rm (mohm) | 15 |
| Weight (without connector) (g) | 110 |
| Body Length (no shaft) mm | 38.1 |
| Diameter (mm) | 33 |
| Shaft Length (mm) (Details pictures) | A=17,4 / B=22.9 |
| Shaft Dia. (mm) | A=3.5 / B=3 |
| Mounting Holes CTC Distance (mm) | 19*2 & 16*2 |
| Mounting Screw | M3x0.5 |
| Max Eff. Curr. | 40.82 / 78.84 |
| Max Eff. | 87.75 / 89.35 |
| Kt (Nm/A | 0.0051 |
| Km (Nm/sqrt(w)) | 0.0419 |
| Max Continuous Power(Watts) | 900 |
| Peak Continuous Power(Watts) (2 sec) | 1200 |
| Max Continuous Current(Amps) | 45 |
