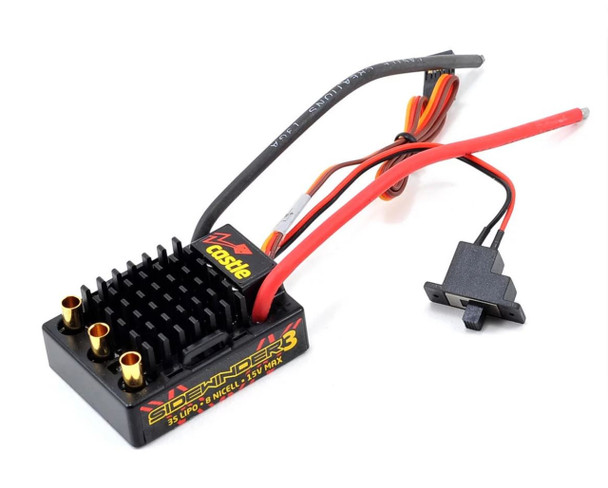

Castle Creations SV3 1/10 Sidewinder 3 Waterproof ESC Speed Control for Brushless / Brush

(No reviews yet) Write a Review
SKU:
010-0115-00
UPC:
819326010392
Condition:
New
  • Castle Creations SV3 1/10 Sidewinder 3 Waterproof ESC Speed Control for Brushless / Brush
  • Castle Creations SV3 1/10 Sidewinder 3 Waterproof ESC Speed Control for Brushless / Brush
  • Castle Creations SV3 1/10 Sidewinder 3 Waterproof ESC Speed Control for Brushless / Brush
  • Castle Creations SV3 1/10 Sidewinder 3 Waterproof ESC Speed Control for Brushless / Brush
  • Castle Creations SV3 1/10 Sidewinder 3 Waterproof ESC Speed Control for Brushless / Brush
  • Castle Creations SV3 1/10 Sidewinder 3 Waterproof ESC Speed Control for Brushless / Brush
  • Castle Creations SV3 1/10 Sidewinder 3 Waterproof ESC Speed Control for Brushless / Brush
MSRP: $97.95
$62.95
— You save $35.00

Description

Don’t Be Afraid to Get Wet!

Sidewinder 3  is the perfect waterproof sport brushless ESC for 1:10 scale off-road, on-road, and rock crawlers running up to 3S LiPo**.

Features:



  • 2s - 3s LiPo; 6 - 8 cell NiMH use in vehicles up 5 lbs with battery, ready-to-run.
  • Sensorless brushless (540 or 36mm)  and/or brushed (down to a 19T) motor operation.
  • Waterproof design ESC
  • 5.0 volts fixed, 2 amps Peak BEC
  • Convenient transmitter programming for six common adjustable settings
  • Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (sold separately), a  Field Link Card  (sold separately) or the Castle Link iOS App and a B-LINK Bluetooth Adapter (sold separately)

Package Includes:



  • Sidewinder 3 ESC
  • User Guide and Quick Start Guide
  • Gearing Chart for Castle Motors
  • Castle decals

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

**Brushed motors are recommended for rock crawlers (vehicles traveling 3-5mph.) Brushless motors are fine for use with rock racing. If your vehicle is going to be in a bound up situation, very slowly traversing rocks and obstacles, you are running a rock crawler. If you are constantly traveling at 5mph or higher, you have a rock racer.

Technical Specs
Input Voltage Range:2s - 3s LiPo; 6 - 8 cell NiMH
BEC Specifications:5.0 volts fixed, 2 amps.
Operating Environment:Waterproof design allows for use in nearly any environment, however, the ESC is not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Brake:Proportional
Reversible:Yes, but may be disabled for racing.
On/Off Switch:Yes.
Cooling Fan:Available, but not included.
Size:L: 1.93" (49mm)
W: 1.48" (38mm)
H: 0.79" (20mm)
Weight (w/wires):ESC: 1.96 oz. (55.5 g)
Connectors:4mm female bullets for motor connection.
Items Needed for Operation:Compatible brushed or brushless motor. Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.
Product Use Statements:Although Sidewinder 3 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
Application Guidelines:Intended for 2WD short course trucks running on 2s LiPo (5700kv or lower) and weighing up to 5 lbs; for 4WD short course trucks please use the Sidewinder SCT ,  Mamba Max Pro SCT or Mamba X ESC.
Great for sport setups on any 2WD Stadium Trucks, Buggies and On-Road Touring cars. Makes a great brushed ESC for rock crawling using a 35T - 55 turn motor.
Please see our 1/10th scale gearing chart for recommend motor, battery and gearing combinations.
Recommended Motors:1406 4600Kv: Max Cells: 3S Lipo or 8 NiMH (2s only for 2WD short course trucks)
1406 5700Kv: Max Cells: 3S Lipo or 8 NiMH (2s only for 2WD short course trucks)
1406 6900Kv: Max Cells: 2S Lipo or 7 NiMH
1406 7700Kv: Max Cells: 2S Lipo or 7 NiMH
Max. Recommended Vehicle Weight:Depends on motor selection, no more than 5lbs for higher kv motors.
Programmability:Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter.
Telemetry Link Capable:No
Tech Notes:Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
