Castle Creations SV3 Waterproof 12v ESC w/ 1406-5700kV Sensored Brushless Motor

(No reviews yet) Write a Review
SKU:
010-0115-06
UPC:
819326011573
Condition:
New
  • Castle Creations SV3 Waterproof 12v ESC w/ 1406-5700kV Sensored Brushless Motor
  • Castle Creations SV3 Waterproof 12v ESC w/ 1406-5700kV Sensored Brushless Motor
  • Castle Creations SV3 Waterproof 12v ESC w/ 1406-5700kV Sensored Brushless Motor
  • Castle Creations SV3 Waterproof 12v ESC w/ 1406-5700kV Sensored Brushless Motor
MSRP: $170.95
$109.95
— You save $61.00

Description

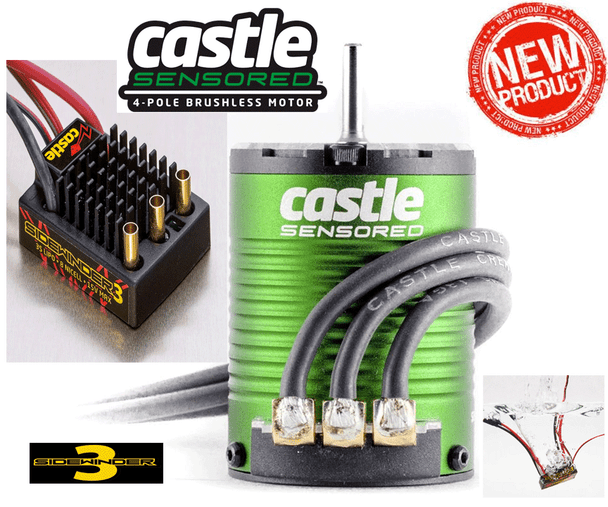

This is the Castle Creations Sidewinder SV3 12V Electronic Speed Control and 1406 5700Kv Sensored Brushless Motor.

**NOT for use in 4WD short course trucks.**
**Sensored capabilities of this motor cannot be utilized with the Sidewinder.**
**If sensored operation is required, a sensored ESC like the Castle Mamba X must be used.**

FEATURES
Sidewinder SV3 12V ESC, CSEM0015
Recommended for 2WD short course trucks on 2s LiPo and geared conservatively.
1/10th 2WD Stadium trucks and buggies on 2s for bashing and limited runs on 3s with conservative gearing. Great for 1/10th scale on-road cars for 2s and 3s use.
NOT for use in 4WD short course trucks.
USB programming capability via Castle Link USB adapter

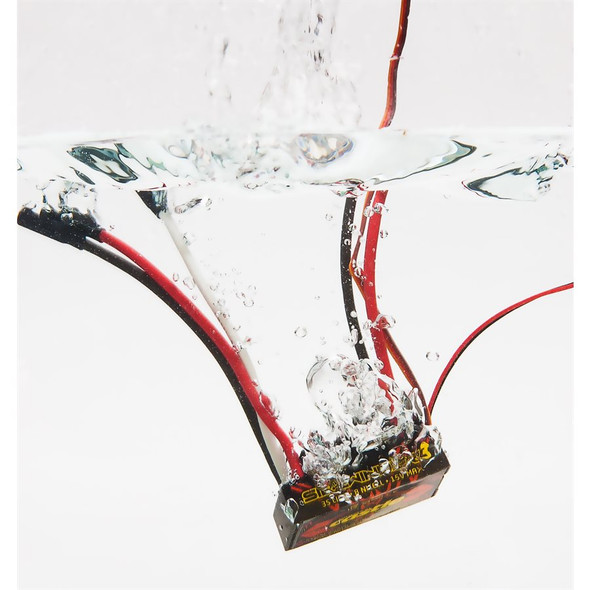

Waterproof for use in nearly every environment (not intended for operation while submerged in liquid)
Compatible with the Castle Creations 14xx series NeuCastle motors
Reversible with reverse lockout
1406 5700Kv Sensored Brushless Motor
For 2WD short course trucks on 2S LiPos geared conservatively, 1/10 scale 2WD stadium trucks and buggies on 2S for bashing and limited runs on 3S LiPos with conservative gearing, also ideal for 1/10 scale on road cars running on 2S and 3S LiPo power
Four pole configuration for maximum efficiency at high RPM

INCLUDES
Sidewinder SV3 12V ESC with 13 gauge Battery Wires with Pre-Tinned Leads, 4mm Female Bullets for Motor Connection, Receiver Connector On/Off Switch, and Instructions 1406 5700Kv Sensored Brushless Motor with Sensor Wire

SPECIFICATIONS
ESC;
Input Voltage: 2S LiPo minimum, 3S LiPo maximum, 9 cell NiCd/NiMH
Brake: Proportional
Reversible: Yes, with lockout
Dimensions: 1.93 x 1.48 x 0.79" (49 x 38 x 20mm)
Weight: 1.96 oz (55.5 g) with 5" (127mm) long battery wires and no battery connector
Motor;
Input Voltage Range: 2-3S LiPo
Kv: 5700
Max. RPM: 100,000
Max. Recommended Vehicle Weight: 5lbs (2278g) with battery RTR
Length: 1.9" (49.5mm)
Diameter: 1.4" (36mm)
Weight with Wires: 7.1oz (202g)
Shaft Diameter: 1/8" (3.17mm)
Shaft Length: 0.59" (15mm)
Mounting Hole Specifications: M3 @ 25mm
Connectors: 4mm Male Castle Bullet
