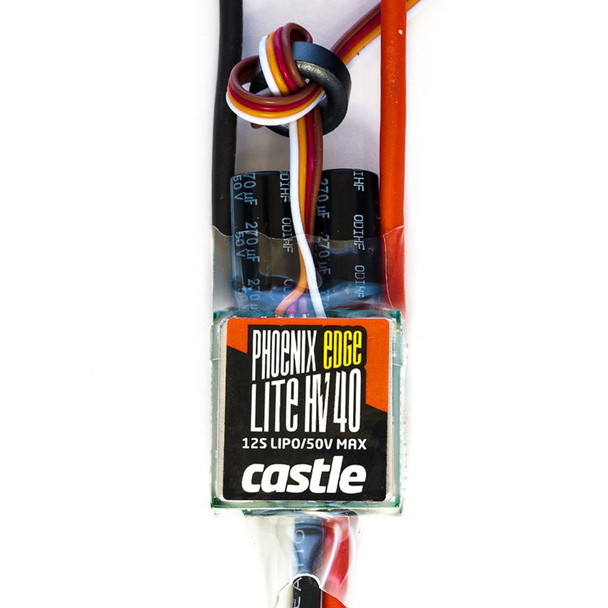

Castle Creations PHOENIX EDGE LITE HV 40 AMP ESC, 12S / 50.4V, NO BEC 010-0116-00

Lose the Weight, Gain the Edge!

Phoenix Edge Series ESCs are the next evolution in speed controller technology. The white user-programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included), or as a receiver arming lock. Combined with data logging, access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB adapter (coupon included) or the Castle Link App and a B-LINK Bluetooth Adapter, the Phoenix Edge offers unparalleled versatility.
Phoenix Edge Lite HV controllers offer all the amazing features and functionality as the regular HV series with a reduced size and weight.

Technical Specs
Input Voltage Range: MIN: 3S LiPo
MAX: 12S LiPo
Max Continuous Amperage at full throttle: 40 amps*
Max Voltage: 50.4V
BEC Voltage: N/A
BEC Output: N/A
Size: Width: 1.0" (25.4mm)
Length: 1.8" (46.3mm)
Depth: 0.9" (56mm)
Weight (w/wires): 2.0 oz. (56g)
1.0 oz. (28g) without wires
Connectors: N/A
Items Needed for Operation:
Battery connectors (sold separately)
Motor connectors (sold separately)
Product Use Statements: N/A
Application Guidelines: Helicopters and fixed wing
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter.
Telemetry Link Capable: Yes
Tech Notes: Receiver voltage input range: 4.8-9v
