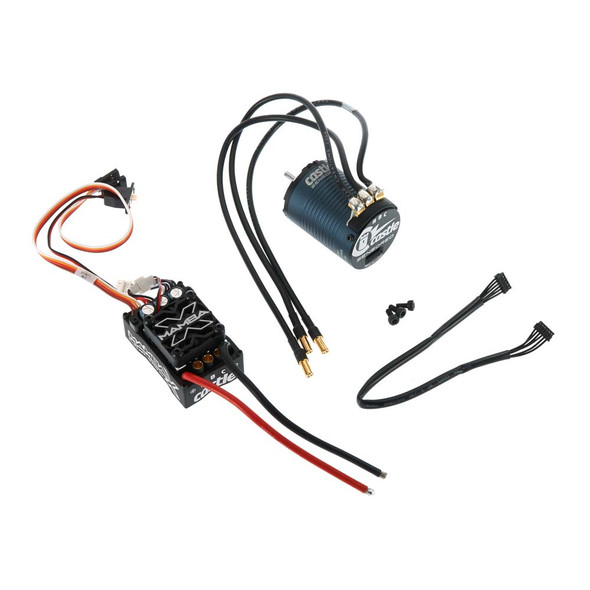

Castle Creations 010-0155-05 Mamba X 25.2V WP ESC/1515-2200kV Motor Combo

Compatible with 1:8 scale off-road and on-road and 1/10 scale 4WD
Short Course Trucks up to 9lbs on 4S LiPo batteries.

ESC;
2S - 6S input voltage range
SMARTSENSE uses motor's sensors for smooth starts, excellent torque and low-speed drivability - then transitions to the sensorless mode with electronic timing, SMARTSENSE automatically advances timing for peak performance during all driving conditions
On-the-fly adjustments can be made through the AUX wire once enabled in Castle Link, then settings can be tuned from transmitter while driving
Recordable real-time data such as RPM, battery current and voltage,
ESC and motor temperature, throttle input and more
Audible alerts
CNC aluminum case
12AWG high strand count silicone insulated battery wires

Motor;
4 pole 12 slot design for high degree of efficiency and less heat
QUIETSENSE technology shields sensors from magnetic field noise through the use of a flux shield in conjuction with secondary sense magnets
High-strength Kevlar wrapped around the high-strength 180° C grade neodymium sintered magnets
Oversized gold plated low resistance solder tabs
ROAR standard sensor port and labeled connections
High performance 0.2mm steel lamination stacked stator
CNC machined anodized 6061 T-6 aluminum motor can and endbells
Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly

Mamba X Extreme 1/10 scale Electronic Speed Control,
Replaceable Wire Harness with Receiver Wire, AUX Wire, Fan Connector,
and Waterproof Switch
Replaceable Motor Sensor Harness
12AWG Battery Wires
Cooling Fan
4mm Gold Plated Bullet Motor Connectors
1515 2200Kv Sensored Brushless Motor

Battery connectors to match selected battery

ESC,
Input Voltage Range: 2S - 6S LiPo
BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Programmable: Fully programmable with Castle Link USB Adapter, and
downloadable Castle Link Windows software
Telemetry Link Capable: Yes
Brake: Proportional
Reverse: Yes, may be disabled for racing
Cooling Fan: 1.2" (30mm) removable
Dimensions: 2.14 x 1.39 x 1.18" (54.4 x 35.2 x 30mm)
Max Recommended Vehicle Weight: 9lbs (4kg) with batteries, ready to
run

Motor,
Input Voltage Range: 3-6S LiPo - 4s maximum with Mamba X ESC
Kv: 2200
Max RPM: 60,000
Length: 3.0" (75.4mm)
Diameter: 1.6" (40mm)
Weight: 15.1oz (429g)
Shaft Length: 0.79" (20mm)
Shaft Diameter: 0.197" (5mm)
Mounting Hole Specs: M3 and M4 @ 25mm
Connectors: 4mm Male Castle Bullet Connectors attached to 12AWG
wire
Sensor Wire Length: 8.3" (210mm)
