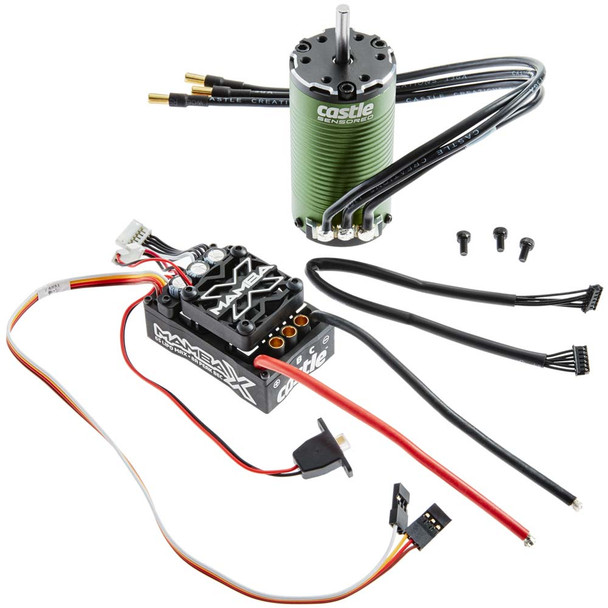

Castle Creations MAMBA X SCT 1/10 Sensored 25.2V Waterproof ESC & 1415 2400KV 3.17mm

**Ideal for 1/10 scale 2WD and 4WD short course trucks up to 6.5lbs**
**using 3 or 4S LiPo power.

ESC;
2S - 6S input voltage range
Smartsense uses motor's sensors for smooth starts, excellent torque and low-speed drivability - then transitions to the sensorless mode with electronic timing, Smartsense automatically advances timing for peak performance during all driving conditions
On-the-fly adjustments can be made through the AUX wire once enabled in Castle Link, then settings can be tuned from transmitter while driving
Recordable real-time data such as RPM, battery current and voltage,
ESC and motor temperature, throttle input and more
Audible alerts
CNC aluminum case
12AWG high strand count silicone insulated battery wires
Motor;
High-strength 180°C grade neodymium sintered magnets with high-strength wrap
High-temperature, high purity copper windings
High-performance 0.2mm steel lamination stacked stator
Vibration dampening wave spring on shaft
Rotor position sensor eliminates cogging and inconsistency during startup
CNC machined 6061 T-6 aluminum endbells and motor can
13AWG high strand count silicone insulated wires with 4mm male bullet connectors
Four pole configuration for maximum efficiency at high RPM
ROAR standard sensor port and labeled connections
Replaceable front end bell/bearing assembly and rotor/shaft assembly

Mamba X Extreme 1/10 scale Electronic Speed Control
Replaceable Wire Harness with Receiver Wire, AUX Wire, Fan Connector,
and Waterproof Switch
Replaceable Motor Sensor Harness
12AWG Battery Wires
Cooling Fan
4mm Gold Plated male and Female Bullet Motor Connectors
1415 1Y 2400Kv 4-Pole Sensored Brushless Motor w/1/8" 3.17mm Shaft
Sensor Wire
Three 3x5mm Socket Head Cap Screws

ESC,
Input Voltage Range: 2S - 6S LiPo
BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Programmable: Fully programmable with Castle Link USB Adapter, and
downloadable Castle Link Windows software
Telemetry Link Capable: Yes
Brake: Proportional
Reverse: Yes, may be disabled for racing
Cooling Fan: 1.2" (30mm) removable
Dimensions: 2.14 x 1.39 x 1.18" (54.4 x 35.2 x 30mm)
Max Recommended Vehicle Weight: 9lbs (4kg) with batteries, ready to
run
Motor;
Input Voltage Range: 3-4S LiPo
Kv: 2400
Max RPM: 75,000
Length: 2.7" (69.5mm)
Diameter: 1.4" (36mm)
Shaft Diameter: 1/8" (3.17mm)
Shaft Length: 0.61" (15.5mm)
Weight: 11.2oz (318g)
Mounting Hole Size: M3 @ 25mm

Waterproof under normal operation. Not intended for operation when
completely submerged in water.
