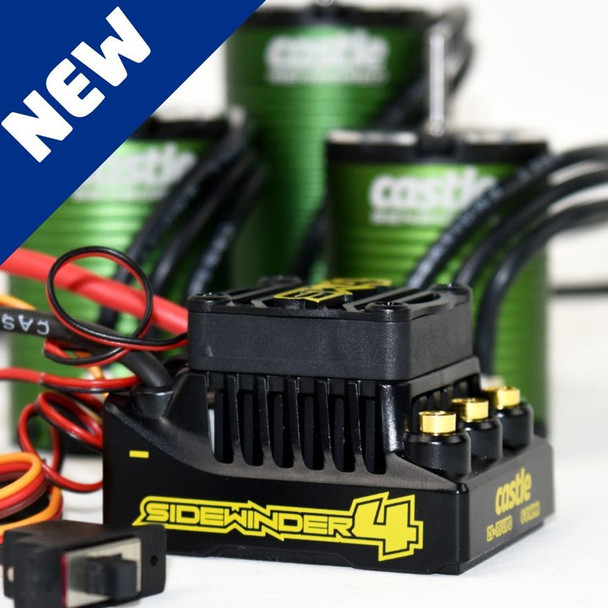

Castle Creations Sidewinder 4 ESC w/1412-2100KV 5mm Shaft Sensor Ready Motor 010-0164-09

While the all new SIDEWINDER 4™ builds upon Castle’s most popular platform, the SIDEWINDER 1:10 SCALE SERIES, it is the first of its kind to run our newest technology, CRYO-DRIVE™. CRYO-DRIVE™ combines technology from cutting-edge hardware and software advancements to increase thermal performance. COOLER TEMPS mean LONGER RUNS and MORE POWER in your SIDEWINDER 4 setup.

This combo includes a Sidewinder 4 ESC and 1412-2100 5mm shaft sensored* motor. The 1412-2100 is ideal for 2WD and 4x4 Short Course Trucks, 1/10th Monster Trucks, and Rock Racers.

Input Voltage Range for 1412-2100 5MM Kv Combo : 2s-3s LiPo
SENSORLESS and BRUSHED Running Modes
5.0 VOLTS FIXED, 2AMP internal BEC (Battery Eliminator Circuit)
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.
ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer.
30mm removable fa
Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
Enhanced drag brake functionality
Smoother sensorless startups.
Convenient TRANSMITTER PROGRAMMING for six common adjustable settings, including cutoff voltage and drag brake.
Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (sold separately)
Optional smartphone-based programming with the B-LINK™ BLUETOOTH ADAPTER (sold separately) and Castle Link App available on Google Play or Apple App Store
PROUDLY DESIGNED, ASSEMBLED AND SUPPORTED IN KANSAS, USA.
Backed by Castle Creations' 1-YEAR WARRANTY
The SIDEWINDER 4 is a versatile ESC and is accepted in a wide variety of applications.  Whether throwing dirt, ripping through a corner or steadily dominating the trails, we’ve got you covered!

Please refer to our Surface Product Selector for recommended motor, battery and gearing for some of the more popular vehicles on the market.

Sidewinder 4 combo includes:
010-0164-00 SIDEWINDER 4 SENSORLESS ESC ONLY
060-0095-00 CASTLE 1412 5mm SHAFT SENSORED MOTOR - 2100KV
Quick Start Guide
1/10th scale gearing chart
Decal sheet
*Sensored capabilities of the motor cannot be utilized with the Sidewinder 4. If you require sensored operation you will need a sensored ESC like the Mamba X or Copperhead .
**Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Technical Specs
Controller
Input Voltage Range: 2s - 3s LiPo; 6 - 8 cell NiMH
BEC Specifications: 5.0 volts fixed, 2 amps.
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: 30mm fan included
ESC Size: L: 2.08" (52.92mm)
W: 1.50" (38.05mm)
H: 1.28" (32.56mm)
ESC Weight (w/wires): 2.26 oz. (64 g)
Connectors: 4mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.
Product Use Statements: *Although Sidewinder 4 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
Application Guidelines: For short course trucks running on 2s and 3s LiPo and weighing up to 6.5 lbs.
It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.
Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market.
Recommended Motors: Combo includes 1412-2100kv (5mm shaft) brushless motor.
Max. Recommended Vehicle Weight: No more than 6.5lbs with battery, ready-to-run.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR Transmitters.
Tech Notes: Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Brushless setups frequently hit 100+ amps in peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas® Power Cells®). Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.

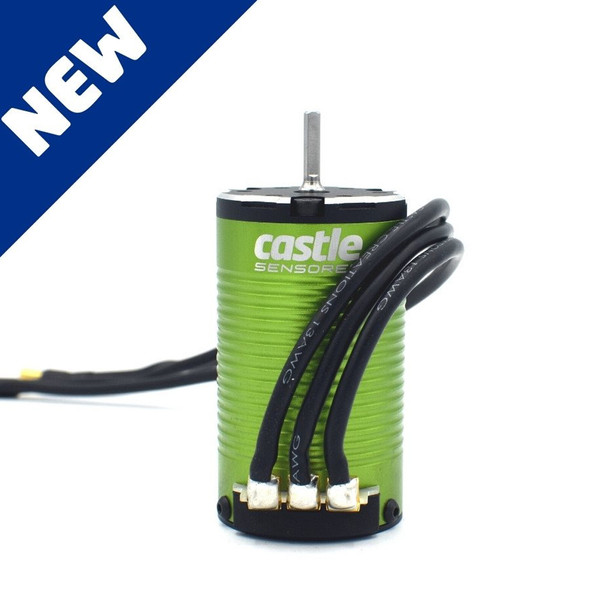

Motor Technical Specs
Input Voltage Range: 2s-4s LiPo (3s Max with included Sidewinder 4)
Kv: 2100
Max. RPM: 75,000
Size: Length: 62.5 mm
Diameter: 36 mm
Weight (w/wires): 265.4g (9.4oz)
Shaft Size: Length: 21 mm
Diameter: .197" (5 mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210 mm length sensor wire
Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SC Trucks, Monster Trucks and rock racers
Max. Recommended Vehicle Weight: 6.5lbs
Tech Notes:
Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
Water Resistant Design: Routine maintenance is recommended after running in wet conditions.

Please refer to this document for running and maintaining motors in wet environments.
