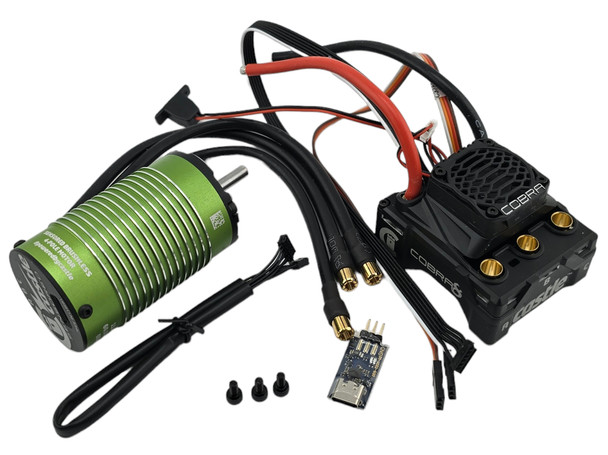

Castle Creations Cobra 8 25.2V Waterproof ESC w/ 1512 - 2650Kv Sensored Brushless Motor

We're thrilled to introduce the Cobra 8, our next generation electronic speed controller (ESC) for surface applications. As the inaugural product in a new line, the Cobra 8 is engineered with cutting-edge technology tailored specifically for 1:8th scale vehicles weighing up to 15 lbs.

The Cobra 8 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.

Crafted with a CNC aluminum bottom case, the Cobra 8 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.

One of its defining features is our acclaimed CRYO-DRIVE™ technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 8 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.

We’ve packaged the Cobra 8 with three different Castle 4 -POLE 12-SLOT motor options to overpower a wide range of 1:8th scale vehicles, this combo includes a Castle 1512-1800Kv Sensored Motor and is ready to overpower 1:8th scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9 lbs.

NEW FEATURES:

32-Bit Processing power for smoother motor control and improved response time.
Enhanced Data Logging includes:
Double the maximum sample frequency of older generations.
8x increased logging time of older generations.
Data point for ESC electrical motor timing.
Data point for acceleration via onboard accelerometer.
Looping feature prevents interruptions in data log recording.
Ability to download specific sessions.
Additional tuning features include:
Improved braking adjustability
Separate brake and reverse curves
Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
Mounting holes located in bottom of aluminum case for installation into vehicle.
MORE FEATURES:

Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo) (4x max with included motor)
SmartSense™, Sensored Only and Brushed Motor Operation Modes
Powerful Integrated 8A Peak Adjustable BEC (5.00V - 8.0V)
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 30mm cooling fan
Waterproof design for all weather conditions
Data logging capability to capture and record performance data from your vehicle
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Includes Castle Link V4 USB adapter for Windows 10+.
Cobra 8 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

MOTOR FEATURES:

4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
Proprietary stator winding produces low internal resistance for a cooler running motor
Dual sensor ports to ensure optimal installation in your large-scale vehicle
Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs

COBRA 8 / 1512-2650kv COMBO COMES WITH:

Cobra 8 ESC
1512-2650kv Sensored Brushless motor
Castle Link V4 USB Adapter
300mm Direct Connect Sensor Wire
Cobra Decals
ESC Quick Start Guide

Technical Specs
Controller
Input Voltage Range: MIN: 2s LiPo
MAX: 6s LiPo (25.2V) (4s max with included 1512-2650kv motor)
BEC Specifications: 5.0V - 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
 Running Modes: SmartSense Brushless, Sensored Only, Brushed
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes, waterproof
Cooling Fan: Yes, factory equipped (30MM),** temperature controlled
Size: 60mm x 52mm x 43mm (2.36" x 2.04" x 1.69")
Weight (with no battery connector): 5.84 oz. ( 165.6 grams)
Connectors: 6.5mm female bullets for motor connection, matching 6.5mm male bullets included with motor
Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
Product Use Statements: *Although the Cobra 8 ESC and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Application Guidelines: With Included motor: Ideal for up to 4S (25.2 Volt) operation in vehicles weighing less than 9 lbs, with batteries, ready-to-run.
Programmability:
Fully programmable Castle feature set using the included FREE Castle Link USB adapter and freely downloadable NEW Castle Link 2 Windows™ software.
Castle Link Mobile App:
Not compatible at this time.
Telemetry Link Capable:
Not compatible at this time.

Motor Specs
Input Voltage Range: 3S-4S LiPo
Kv: 2650Kv
Max. RPM: 60,000
Size: Length: 67.7mm
Diameter: 40mm (41.4mm with fins)
Weight (w/wires): 383g (13.6oz) with wires. 334g without wires.
Shaft Size: Length: 20mm
Diameter: 5mm
Mounting Hole Specifications: M3 and M4 @ 25mm
Cooling Fan: Optional
Connectors: 6.5mm male connectors on 10-gauge wire
Application Guidelines:
Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbs and up to 4s LiPo.
Tech Notes:
Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
