Castle Creations

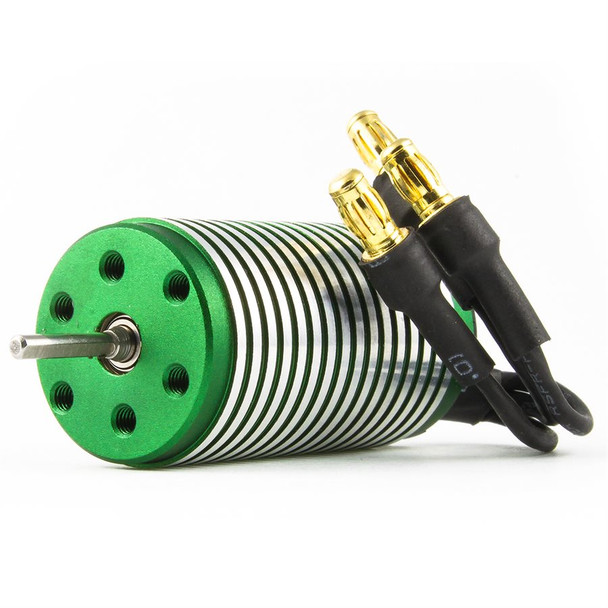

Castle Creations 0808 Brushless Motor Inrunner 5300KV : 1:18

(No reviews yet) Write a Review
SKU:
060-0038-00
UPC:
819326010200
Condition:
New
  • Castle Creations 0808 Brushless Motor Inrunner 5300KV : 1:18
  • Castle Creations 0808 Brushless Motor Inrunner 5300KV : 1:18
MSRP: $60.95
$43.95
— You save $17.00

Description

Mini Size, Massive Power!

Our 4 pole 0808 series motors are intended for on-road and off-road applications running up to 3S LiPo and weighing in at up to 2.25lbs. 0808 motors are available with in combos with both of our race-proven Micro ESCs. For 2WD and lighter 4WD vehicles (<1.5lbs) we recommend the Sidewinder Micro 2, and for heavier 4WD vehicles (>1.5lbs) the Mamba Micro X is recommended. The 0808 series motors delivers tremendous performance for an extremely affordable price.
Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)

Technical Specs
Input Voltage Range: 2S-3S LiPo, 4-9 cell NiMH
Kv: 5300
Max. RPM: N/A
Size: Length: 1.5" (38mm)
Diameter: 0.79" (20mm)
Weight (w/wires): 1.8 oz. (50g)
Shaft Size: Diameter: 0.08" (2mm)
Length: 12mm
Mounting Hole Specifications: 2.5mm holes @ 1/2”, 14MM, 5/8”
Cooling Fan: No
Connectors: 3.5mm male bullets
Items Needed for Operation: Compatible ESC (See Recommended ESC(s) below)
Product Use Statements: N/A
Application Guidelines: Up to 3S LiPo and weighing in at up to 2.25lbs.
Recommended ESC(s): Mamba Micro X, Sidewinder Micro 2
Max. Recommended Vehicle Weight: 2.25lbs
Tech Notes: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
