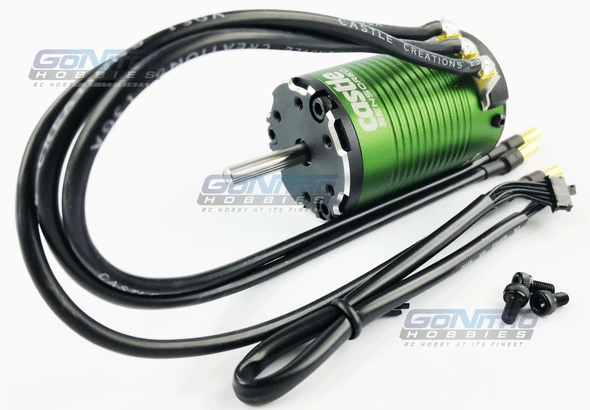

Castle Creations 1415 2400kV 4-Pole Sensored BL Motor w/ 5mm Diameter Shaft

Ideal for 1/10 scale 2WD and 4WD short course trucks up to 6.5lbs
using a 3-4S LiPo battery
High-strength 180°C grade neodymium sintered magnets with high-
strength wrap
High-temperature, high purity copper windings
High-performance 0.2mm steel lamination stacked stator
Vibration dampening wave spring on shaft
Rotor position sensor eliminates cogging and inconsistency during
startup
CNC machined 6061 T-6 aluminum endbells and motor can
13AWG high strand count silicone insulated wires with 4mm male bullet
connectors
Four pole configuration for maximum efficiency at high RPM
ROAR standard sensor port and labeled connections
Replaceable front end bell/bearing assembly and rotor/shaft assembly

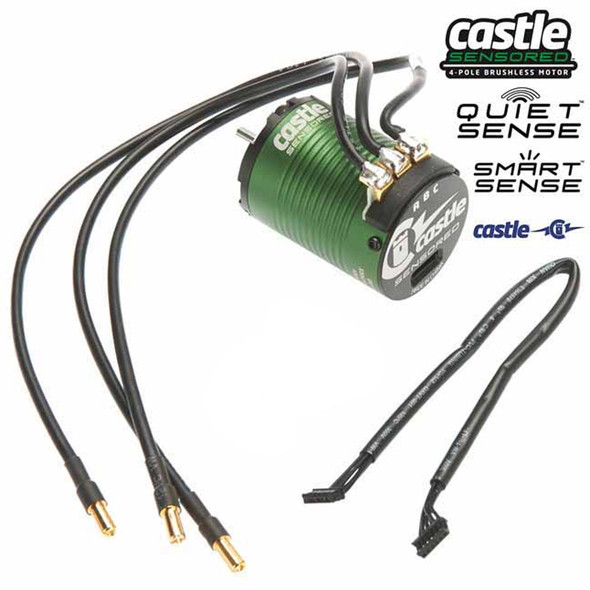

1415 1Y 2400Kv 4-Pole Sensored Brushless Motor, Sensor Wire, Power
Leads with 4mm Male and Female Castle Bullet Connectors and three
3x5mm Socket Head Cap Screws

Compatible electronic speed control such as the Castle Mamba Max Pro,
Mamba Monster X and Mamba X

Input Voltage Range: 3-4S LiPo
Kv: 2400
Max RPM: 75,000
Length: 2.7" (69.5mm)
Diameter: 1.4" (36mm)
Shaft Diameter: 0.196" (5mm)
Shaft Length: 0.83" (21mm)
Weight: 11.3oz (319g)
Mounting Hole Size: M3 @ 25mm
