ARRMA ARA7615V2T1 1/7 INFRACTION 6S BLX V2 All-Road Truck RTR Blue

Take high-speed street bashing performance to another level with the 1/7 scale ARRMA® INFRACTION™ 6S BLX 4WD RTR. Capable of 80+ MPH speeds out of the box over on-road, dirt, and oval tracks, it now includes a handbrake and Spektrum® Smart electronics.
Key Features
Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)
Spektrum® Firma™ 150A Smart ESC
dBoots® Hoons™ all-road tires
RTR Completion Level includes everything needed besides batteries and a compatible charger

 In The Box
(1) 1/7 ARRMA® INFRACTION™ Resto Mod Street Bash 6S BLX 4WD RTR
(1) Spektrum® Firma™ 150A Smart ESC (installed)
(1) Spektrum® Firma™ 4074 2050Kv Brushless Motor (installed)
(1) ARRMA® ADS-15M Waterproof* Servo (installed)
(1) Spektrum® SPMS650 Waterproof* Brake Servo (installed)
(1) Spektrum® SR6110AT AVC Receiver (installed)
(1) Spektrum® DX3™ DSMR® Radio
(1) Product Manual

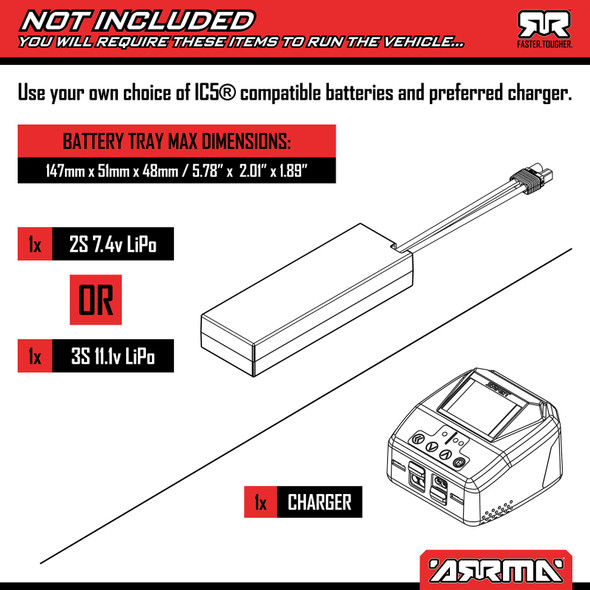

 Needed to Complete
(2) 2S or 3S LiPo batteries
Compatible charger
Safe LiPo charging bag
(4) AA transmitter batteries

Features
Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)
Compatible with Spektrum® Dashboard™ app for iOS or Android
ARRMA® ADS-15M Waterproof* Steering Servo
Spektrum® SPMS650 Waterproof* Brake Servo
Spektrum® Firma™ 150A Smart ESC
Spektrum® Firma™ 4074 2050Kv Brushless Motor with Safe-D pinion gears
New electronics module
New mechanical handbrake feature
Fresh street body look with matte gloss effect designs
Tunable wing for customizing the downforce
Full-width front splitter balances downforce distribution
Rear diffuser increases downforce and grip for cornering faster and with confidence
Adjustable front and rear body mounts
3mm Plate, 6061-T6 anodized aluminum chassis
Center brace for maximum durability
Heavy-duty drivetrain with durable steel driveshafts throughout
High-speed center driveshaft support
Rubber-shielded bearings
All-metal diff outdrives and gearbox internals
Updated internal gears with new tooth profile for increased strength
Lower internal gear ratio to reduce the center line transmission RPM, reducing center drive shaft resonance and increasing drivetrain durability
Oil-filled, adjustable, anodized aluminum shocks
Black-anodized aluminum front and rear shock towers
Waterproof* receiver box
Large battery trays
5-spoke wheels
Durable wheel hubs
dBoots® Hoons™ all-road tires
2-year limited warranty (see manual for details)
* For details on waterproof standards, please refer to the product instruction manuals

Overview
The ready-to-run INFRACTION™ 6S BLX 4WD 1/7 scale truck tops off a tough and powerful ARRMA® brushless platform with stunning style — ideal for intermediate-level drivers who are eager to experience street bashing at 80+ MPH speeds (achievable in optimum conditions using a 6S LiPo and the included speed pinion gear). Its Spektrum® DX3™ radio and Smart brushless power system components provide real-time telemetry that also helps you reach and maintain maximum performance.

Another feature new to the INFRACTION™ 6S BLX 4WD is a handbrake. The chassis includes a module for a rear vented disc brake and a powerful Spektrum® SPMS650 brake servo. You control the handbrake from a convenient switch on the DX3™ transmitter for thrilling drifting, "hooning" and stunt action.

With its 4X4 traction, you can run the INFRACTION™ 6S BLX 4WD on all roads, in all conditions — over loose gravel, asphalt, smooth dirt, and short grass, in the sun, rain, and ice — while enjoying fresh RESTO MOD looks. The street body arrives factory-finished with new matte gloss effect designs. The included tunable wing lets you customize the downforce just the way you want it.

To further enhance the aerodynamics, the chassis includes a full-width front splitter that balances downforce distribution. A rear diffuser increases downforce and grip, enabling you to corner faster and with confidence. Mounted on realistic 5-spoke wheels, the four dBoots® Hoons™ all-road tires keep their grip on the surface to pour on speed or stop on a dime.

Underneath those streamlined Street Bash looks is a chassis which proves to the world, once again, that ARRMA® builds the most durable bashers. The 6061-T6 anodized aluminum chassis houses a heavy-duty drivetrain with steel driveshafts, plus all-metal diff outdrives and gearbox internals. Updated internal gears feature a new tooth profile for increased strength. A lower internal gear ratio reduces the center line transmission RPM, reducing the center drive shaft resonance and increasing drivetrain durability. Chassis toughness is reinforced with a center brace. Bearings are rubber-shielded, and the adjustable, oil-filled, anodized aluminum shocks are mounted on strong, black-anodized aluminum shock towers.

ARRMA® has equipped the ready-to-run INFRACTION™ 6S BLX 4WD with the 3-channel Spektrum® DX3™ radio and an SR6110AT receiver featuring AVC® (Active Vehicle Control™) technology for high-speed stability. A convenient voltage level indicator is built into the transmitter which lets you easily track on-board Smart battery power. The vehicle's brushless power system also features Spektrum® Firma™ Smart components, so it's easy to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM. Just download the Spektrum® Dashboard™ app for iOS or Android, available for free at the App Store or Google Play.

STUNNING NEW BODY PRINTS
Two new striking color schemes to choose between. Which one will you pick?



ALL-ROAD AGGRESSION ALL-ROAD AGGRESSION
dBoots HOONS tires designed for extreme all-road action. Classic 5-spoke wheels.



FULLY INTEGRATED AERO FULLY INTEGRATED AERO
Integrated chassis and diffuser for slick underside airflow



DYNAMIC DUO DYNAMIC DUO
Front bumper protection and aerodynamic splitter



HANDBRAKE MODULE HANDBRAKE MODULE
Innovative ARRMA design - mechanical rear brake operated by a thumb switch on the transmitter



SPEKTRUM BRAKE SERVO SPEKTRUM BRAKE SERVO
Strong, metal gears used throughout
Waterproof, dustproof case
23 tooth output spline
Torque: 6kg-cm (84oz-in) @6V
Speed: 0.12sec/60deg @6V
Dimensions: 40x38x20mm (industry standard size)


WELL SUPPORTED WELL SUPPORTED
The included center driveshaft high-speed support set prevents vibrations and increases drivetrain durability



HEAVY DUTY HEAVY DUTY
Tough A-arms and drivetrain components that keep you bashing for longer



CAPTURED & SEALED CAPTURED & SEALED
Captured ball ends that will never pop off and hub nut o-rings.



SAFE-D FIRST SAFE-D FIRST
Input gears are keyed to the drive cups composite sleeves to fortify the retention of the drive cup set screw



HAVING IT LARGE HAVING IT LARGE
Large battery trays allow you to fit up to 7.09" (180mm) x 2.17" (55mm) x 2.76" (70mm) size batteries



ARRMA ADS-15M SERVO ARRMA ADS-15M SERVO
Strong, metal gears used throughout
Waterproof, dustproof case
25 tooth output spline
Torque: 14kg-cm (194oz-in) @6V
Speed: 0.16sec/60deg @6V
Dimensions: 40x38x20mm (industry standard size)


SPEKTRUM FIRMA ESC SPEKTRUM FIRMA ESC
Waterproof, dustproof design
150A, 6S LiPo ready (3S, 4S, & 6S compatible)
Spektrum Smart Technology
Fitted with reliable IC5 connectors (EC5 compatible)
Integrated fan for reduced heat during extreme running
High Quality 10awg wires
Low voltage cut-off and thermal overload protection
User programmable punch, brake, BEC, LVC sensitivity, reverse speed, and motor timing settings


SPEKTRUM FIRMA MOTOR SPEKTRUM FIRMA MOTOR
2050Kv 4074 size 6S brushless motor
Beautifully etched aluminum can
4-pole construction for smooth, consistent power
4mm gold bullet connectors for reliable and efficient connection
Black anodized aluminum motor can for increased heat dissipation
Super strong 5mm shaft
Groove at the end of the motor shaft allows the installation of a pinion retaining E-clip


SPEKTRUM DX3 RADIO & SR6110AT AVC RECEIVER SPEKTRUM DX3 RADIO & SR6110AT AVC RECEIVER
Ergonomic steering wheel for precise control
On-the-fly adjustable AVC gain for personalized handling
Lightweight and ergonomic design for long bashing
3 channel radio system
2.4GHz connection built around DSMR technology
Full-range telemetry capabilities

Product Specifications

Approximate Assembly Time Less than an hour
Ball Bearings Full set
Battery Sold Separately
Battery Tray Dimensions 5.45 x 1.83 x 1.38 in (138.5 x 46.5 x 35mm)
Body INFRACTION, Screen printed, Decaled, Trimmed
Brakes Metal disc with metal pads
Bushing Material Metal
Charger Sold Separately
Chassis 0.12 in (3mm) Plate, 6061-T6 Aluminum
Completion Level Ready-To-Run
Differential Three oil-filled metal gear
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Final Drive Ratio 8.58:1
Front Track 12.13 in (308mm)
Power Type Electric
Gear Pitch 1.0MOD
Ground Clearance 0.59 in (15mm)
Internal Gear Ratio 2.8:1
Max Battery Dimensions 5.5 x 1.85 x 1.5" (140 x 47 x 38mm)
Motor Type Brushless - Sensorless
Pinion 15T
Product Height 7.87" (200 mm)
Product Length 27.36" (695 mm)
Product Weight 11lbs (4990g)
Product Width 12.2" (310 mm)
Radio Included
Rear Track 12.01 in (305mm)
Receiver Included
Scale 1/7
Servos Included
Shock Type 3.03 in (77mm) FR, 3.43 in (87mm) RR. aluminum body, oil-filled
Speed Control Included
Spur Gear 46T
Suspension Independent
Vehicle Type On-Road
Wheelbase 15.98 in (406mm)
