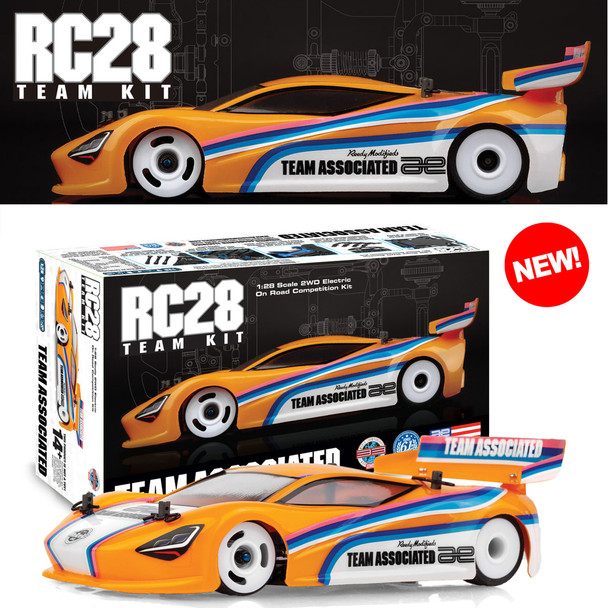

Associated 20165 RC28 Team Kit 1:28 Scale 2WD Electric On-Road Competition Kit

Introducing the Team Associated RC28R Team Kit. This compact on-road race car is designed with the same engineering precision found in every AREA 51-developed product. Though small in scale, the RC28R delivers big performance in an easy to set up package. Featuring a fixed-arm front suspension with included optional molded upper arms for tuning caster and camber. The torsion side links (soft, medium, and hard included) replace the need for a side spring making setup easy while adding performance in areas a conventional spring does not. The battery holder design ensures quick access without disturbing the center shock.

The steel chassis plate provides a low center of gravity while the insert adjustable roll center enables chassis roll adjustment based on the grip level. The pitch, roll and droop can further be tuned/Adjusted with the threaded aluminum center shock, spring collars and side damper tubes. The two-piece rear pod allows quick axle height adjustment utilizing Factory Team carbon fiber shims. Fine-tune Ackermann on the fly with the adjustable servo mount. Compact, tunable, and designed to race, the RC28R is built for high performance and fun—even in tight spaces.

Features
Steel chassis plate for low center of gravity
Fixed arm style front end with optional molded upper arms to adjust caster and camber
Front bulkhead design allows for quick upper arm changes with consistent fitment and position
Optimized steering geometry with adjustable servo mount to tune ackerman on the fly
Easily removable battery holder to access the battery without removing center shock
Torsion style side links act as side spring with soft, medium, and hard options included
Adjustable rear pod roll center inserts to tune roll characteristics to grip level
Optimized roll geometry with side damper tubes
Threaded aluminum center shock with adjustable droop and spring collar
Two-piece rear pod with adjustable axle heights for different tire diameters and ride heights utilizing Factory Team carbon fiber shims
Gear differential included and can fit other aftermarket options currently available
Hard plastic and polycarbonate body mounting options included
White wheels included that fit optional front wheel flanges to tune steering feel

Universal front bumper included

Not Included:
Body

Other Helpful Items
Silicone Shock Fluid (Refer to catalog for complete listings)
Silicone Diff Fluid (Refer to catalog for complete listings)
Body Scissors (AE Part # 1737)
Reamer / Hole Punch
FT Wrench Set (AE Part #1519)
Hobby Knife
Needle Nose Pliers
Wire Cutters
Soldering Iron
Calipers or a Precision Ruler
1.5mm hex, .050” hex, 1.3mm hex, 0.9mm hex, 4.5mm nut, and PH00 drivers

* This vehicle comes as a kit and must be fully assembled by the user. Body, Electronics and/or an engine/motor may be required.

Power Source:

Electric

Terrain:

On-Road

Body Style:

Other

Scale Size:

1:28 Scale

Assembly Level:

Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)

Length:

140mm (5.51in)

Width:

varies

Wheelbase:

98mm (3.86in)

Weight:

varies

Internal Gear Ratio:

varies

Drive:

RWD

Product Status:

Active
