Description

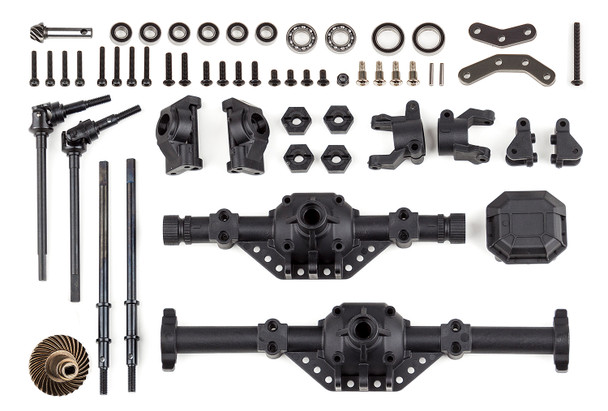

Enduro Axle Kit
#42077 contents:
qty 1 Assembly instructions
qty 1 Axle Housing
qty 2 Axle Mount (Outer)
qty 1 Axle Housing (Front)
qty 1 Axle Housing (Rear)
qty 1 Caster Block (Left)
qty 1 Caster Block (Right)
qty 2 Steering Spindle
qty 1 Steering Plate (BTA-Left)
qty 1 Steering Plate (BTA-Right
qty 1 Ring Gear [30T]
qty 1 Pinion Gear [8T]
qty 2 Universal (Front)
qty 2 Drive Shaft (Rear)
qty 4 Wheel Hex, Composite
qty 4 Shoulder Screw [M3x4x10mm]
qty 2 M2.5x0.45x16mm SHCS (Black)
qty 4 M2.5x0.45x14mm SHCS (Black)
qty 2 M3x14mm BHCS (Black)
qty 4 M3x0.5x12mm BHCS (Black)
qty 4 M3x0.5x6mm BHCS (Black)
qty 2 Drive Shaft Pin [2x11mm]
qty 6 Rubber Sealed Ball Bearing [5x
qty 2 Ball Bearing [7x14x3.5mm]
qty 2 Ball Bearing (Rubber Shielded)
