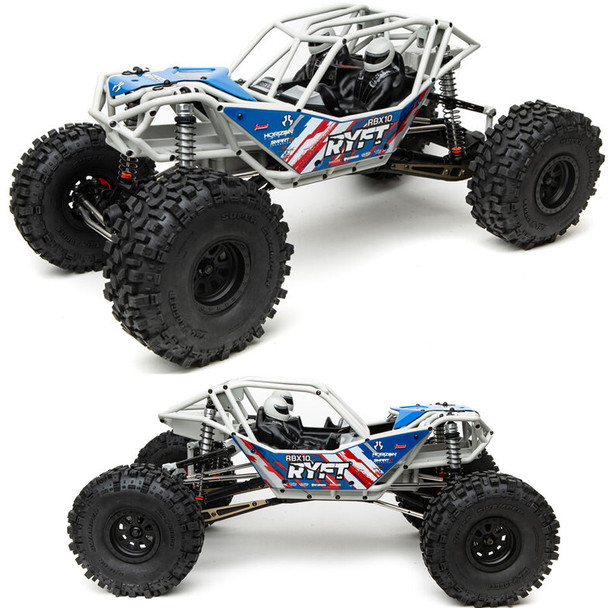

AXIAL AXI03009 1/10 RBX10 Ryft 4WD Rock Bouncer Kit Gray

Like real rock bouncers, the RBX10™ Ryft™ 1/10 scale kit is designed to tackle challenging terrain at high speeds. With a 4WD transmission, robust tube chassis, 4-link suspension and more, this Axial® vehicle handles lots of abuse and loads of power.
Key Features
Strong tube chassis design
Full-time 4WD transmission
Solid front and rear axles with realistic metal differential covers
Hardened steel universal axle set
Long travel front and rear oil-filled shocks

 In The Box
(1) Axial® RBX10™ Ryft™ 1/10 4WD Kit
(1) Optional 2-Speed Set
(1) Optional Sway Bar Set
(1) Optional Differential Spool
(1) Optional Lower Link Plate Rear
(1) Product Manual

 Needed to Complete
(1) Radio System
(1) Steering Servo
(1) ESC and Motor
(1) LiPo Battery and Compatible Charger
(1) Micro Metal Gear Servo (for 2-speed configuration)

Features
Strong tube chassis design
Full-time 4WD transmission
Solid front and rear axles with realistic metal differential covers
Hardened steel universal axle set
Tough, large diameter WB11 Wildboar™ driveshafts
4-Link suspension system
Long travel front and rear oil-filled shocks
Officially licensed Raceline Monster wheels
Simulated disc brakes for extra realism
Interco Super Swamper TSL (Three Stage Lug) Bogger tires
Kit also includes option parts

Axial® introduces another first with the 1/10 scale RBX10™ Ryft™ 4WD, a kit that allows intermediate level RC drivers to experience the thrills of rock bouncer off-road action. Full-size rock bouncers refuse to stop — or even back down on the throttle — when facing steep climbs and massive rocks. So does the RBX10™ Ryft™ 4WD. This ground-up new Axial® vehicle handles lots of abuse and loads of power!

The RBX10™ Ryft™ 4WD's robust, custom tube chassis is engineered from a high-strength composite plastic that withstands the hard knocks of RC off-roading — even while moving at high speeds over difficult off-road terrain. Both the front and rear axles boast a durable one-piece, molded plastic, solid axle design and realistic metal differential covers. Officially licensed Interco TSL Super Swamper Bogger tires on Raceline Monster wheels do their part to tame wild tracks, aided by a 4-link suspension and adjustable, long travel front and rear oil shocks. These features, plus a full-time 4WD transmission, make the RBX10™ Ryft™ an exciting vehicle to take on tough challenges at full throttle.

The Ryft™ kit comes with a clear body for finishing in your favorite colors, plus decals and realistic interior details. Many option parts are also included: spool/locker, rear aluminum link plates, rear sway bar, and parts for a 2-speed or single-speed transmission setup (servo not included). Build and finish the kit as you wish and complete it with your choice of radio system, motor, ESC and battery. Then, enjoy rock bouncing off-road driving over trails, dirt, gravel, rocks and more, with an RC vehicle that's engineered to take it — the Axial® RBX10™ Ryft™ 4WD.

Custom Tube Chassis
Axial® is known for custom tube chassis that are strong and well-designed. The Axial® RBX10™ Ryft™ chassis is all that and much more, with the resilience to withstand the hard knocks of rock bouncing.


Front and Rear Solid Axles
The RBX10™ Ryft™ 4WD is engineered to carry a lot of power over punishing off-road tracks — as evidenced by the durable one-piece, molded plastic, solid axle design of its front and rear axles. The axles also feature realistic metal differential covers in a raw, unfinished appearance.


Universal Axle Set
Hardened steel universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.


Interco Super Swamper TSL Booger Tires
The Ryft™ 4WD's licensed replica Bogger tires feature a directional tread pattern with the patented Interco TSL lug design. The custom siping follows a pattern used by many professional competitive rock bouncers who want an aggressive tire that performs as good as it looks.


Aluminum Long Travel Shocks
The oil-filled shocks feature threaded bodies and a single coilover spring, plus an aluminum shock cap and pre-load adjustment for tuning the suspension to achieve the best dampening rate. The 12mm bore size allows more fluid volume for better performance.


WB11 Wildboar Driveshafts
The RBX10™ Ryft™ 4WD kit includes tough, large diameter WB11 Wildboar™ driveshafts to handle extreme power.


Raceline Monster Wheels
In full-size, Raceline is the most popular wheel for extreme off-road duty — with a show-quality finish and proven ability to take abuse. Officially licensed Raceline Monster wheels give the 1/10 scale Ryft™ authentic looks and the strength to handle anything you can dish out.

4-Link Suspension
The suspension geometry uses a 4-link design which is optimized to reduce axle steer and to provide the proper anti-squat and roll characteristics. The 4-link system also aids against suspension wrap-up in high-power applications.

Option Parts Included
The RBX10™ Ryft™ 4WD kit comes with parts needed to build it with a single or two-speed transmission (servo not included), as well as optional rear sway-bar, rear aluminum link plates, and spool/locker.

Product Specifications

Ball Bearings Full set
Battery Sold Separately
Brakes Integral with ESC (ESC not included)
Bushing Material Metal
Charger Sold Separately
Chassis Injection molded plastic
Completion Level Kit
Differential Bevel gear
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Front Track 12.75" (323.8mm)
Power Type Electric
Gear Pitch MOD 1
Ground Clearance 3.25" (82.5mm)
Motor Type Brushless - Sensored
Pinion 17T
Product Height 8.75" (222 mm)
Product Length 21.5" (546 mm)
Product Weight 7.26lbs (3.29kg)
Product Width 12.75" (324 mm)
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type Oil-filled, Front 5.11 in (130mm), Rear 5.70 in (145mm
Speed Control Sold Separately
Spur Gear 53T
Suspension Solid axle 4-link
Tire Tread Interco TSL Bogger
Vehicle Type Rock Racer
Water-Resistant Yes
Wheelbase 15.25" (387 mm)
Wheel Type Raceline Monster
Wheel Width 1.6 in (40.64mm)
