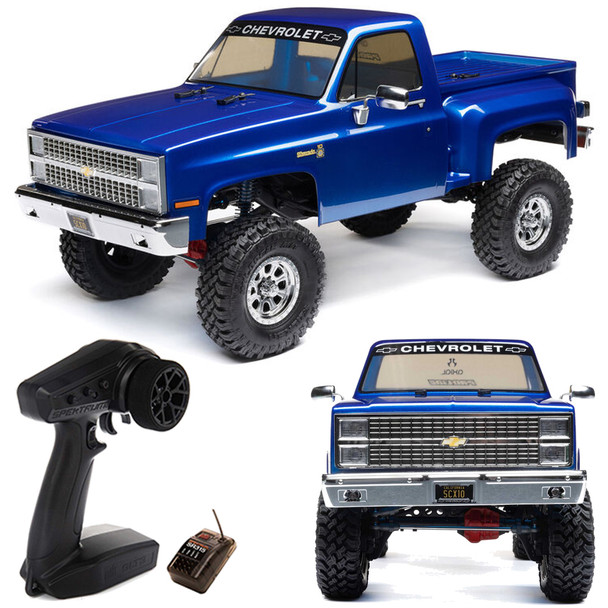

Axial AXI03030T1 1/10 SCX10 III Base Camp 1982 Chevy K10 4X4 RTR, Blue

In The Box
(1) 1/10 SCX10 III Base Camp 1982 Chevy K10 4X4 RTR
(1) Dynamite 35T 540 Brushed Motor
(1) Spektrum SLT3 3-Channel SLT Radio
(1) Spektrum SR315 DSMR 3-Channel Receiver
(1) Spektrum S614 15kg Steel Gear WP Servo 23T
(1) Spektrum 40A Waterproof Brushed ESC
(4) AA Transmitter Batteries
(1) SCX10 III Base Camp 1982 Chevy K10 Product Manual

 Needed to Complete
(1) 2S or 3S LiPo Battery with EC3 or IC3 Connector
(1) Compatible LiPo Charger

Features
Factory assembled and ready to run
Strong SCX10 III steel C-channel chassis
High clearance AR45 portal axles
Durable LCXU transmission
All-metal pivot balls
All-metal gears
Full ball bearings
Tunable oil-filled shocks
Officially licensed 1982 Chevy K10 stepside body
Officially licensed Falken Wildpeak tires
Dynamite 35T brushed motor
Spektrum 40A brushed ESC
Spektrum SLT3 3-channel 2.4GHz radio

Overview
Even casual automotive enthusiasts instantly recognize the Chevy K10 pickup. Although its straight-lined appearance earned it the "square body" nickname, the iconic truck was also among the first C/K generations to be optimized by computers and wind tunnels for lower drag and improved fuel economy. The result was a beautiful and rugged classic that you can now drive for yourself with the Axial SCX10 III Base Camp 1982 Chevy K10.

Offered in a proven ready-to-run package, the Base Camp K10 is easy to get going and goes almost anywhere — just like the full-size truck, which could be found driving over country roads, farm fields, and wooded trails before ending the day parked on Main Street. Designed more for Americana-inspired off-road fun than performing technical climbs and precarious sidehills, the Base Camp K10 is ideal for anyone. It's a great first crawler and a fantastic addition to every longtime Axial fan's fleet.

The officially licensed Proline Chevy K10 stepside body comes expertly factory-painted and detailed. Axial matches the accurate scale looks with equally impressive durability and performance. The SCX10 III steel C-channel chassis is strong, realistic, and easy to maintain. Included AR45 portal axles add high ground clearance. The rugged LCXU transmission, with full ball bearings and all-metal internal gears, works with portal or standard axles. And the list goes on, with an optimized suspension, tunable oil-filled shocks, a trail-tough drivetrain, and much more.

For more RTR convenience, the Base Camp K10 power system — featuring a Dynamite 35T brushed motor and Spektrum 40A brushed ESC — also arrives factory-installed, and the supplied Spektrum SLT3 radio is ready to deliver dependable 2.4GHz control. Just add your choice of 2S or 3S LiPo battery and take the wheel of this classic American truck!

SCX10 III STEEL C-CHANNEL CHASSIS
Strong and stiff, the SCX10 III steel C-channel chassis reduces frame flexing and increases the precision of suspension movement.



AR45 PORTAL AXLES
Included AR45 portal axles provide extra ground clearance at the differential for easier off-road maneuvering.



LCXU TRANSMISSION
The LCXU 4-wheel drive transmission is durable, simple, and works with standard and portal axles. The transmission includes a full set of ball bearings and all-metal internal gears for strength and durability.



OPTIMIZED SUSPENSION GEOMETRY
The front suspension geometry of the Base Camp K10 is optimized to reduce bump steer, while the rear 4-link reduces torque twist.

METAL LINKS
All links and pivot balls are metal for durable, long-lasting performance.



ALUMINUM ADJUSTABLE COILOVER SHOCKS
The oil-filled shocks have aluminum threaded bodies and a single coilover spring. The shocks are tunable for achieving the best dampening rate.



FALKEN WILDPEAK M/T TIRES
The new 4.19" Falken Wildpeak M/T R35 compound tires on one-piece Raceline 928 Monster wheels included with the Base Camp K10 provide optimized ground clearance and grip on dirt, rocks, and all other off-road trails.



INSTALLED POWER SYSTEM
The included and installed power system features a Dynamite 35T brushed motor and Spektrum 40A brushed ESC. With this simple and reliable combo, you'll spend more time on trail and less time on maintenance.

DETAILED SCALE PROLINE CHEVY K10 BODY
Factory-painted and detailed, the officially licensed 1982 Proline Chevy K10 stepside body captures the instantly recognizable "square body" lines of the iconic truck.



SPEKTRUM SLT3 RADIO SYSTEM
The included SLT3 3-channel radio provides dependable 2.4GHz control plus user-adjustable features including steering and throttle trims, steering rate, and throttle limits. The included SR315 DSMR 3-Channel Sport Receiver allows for an easy upgrade path to higher channel transmitters such as the Spektrum DX5C, DX5 Rugged or the DX5 Pro.

Product Specifications
Ball Bearings Full Set
Chassis Adjustable Steel C-channel
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Make Chevy
Product Height 9.75" (248 mm)
Tire Compound R35
Wheel Hex Size 12mm
Battery Sold Separately
Connector Type IC3
Ground Clearance 2.5 in (63.5mm)
Internal Gear Ratio 45.6:1
Motor Size 540
Product Length 20.75" (527 mm)
Spur Gear 52T
Steering Type 2WS
Charger Sold Separately
Differential Locked
Receiver Included
Shock Type Oil-Filled/Coil-Over Spring
Body Polycarbonate
Brakes Integral with ESC
Pinion 14T
Scale 1/10
Final Drive Ratio 45.6:1
Motor Type Brushed
Speed Control Included
Wheelbase 12.3" (312 mm)
Suspension Multi-Link Solid Axle
Wheel Width 1 in (25.4mm)
Product Weight 5lb (2.3kg)
Tire Tread Falken Wildpeak M/T
Vehicle Type Rock Crawler
Water-Resistant Yes
Power Type Electric
Gear Pitch 32P
Servos Included
Product Width 9.25" (235 mm)
Radio Included
