Power HD

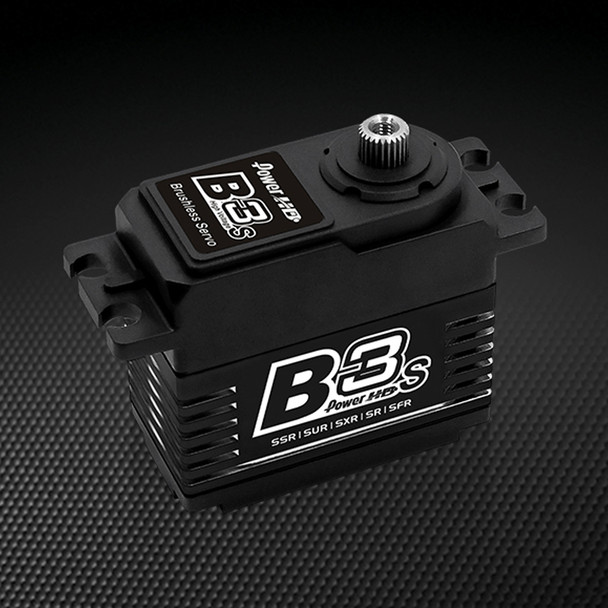

POWER HD B3S 555.5 oz / 0.08s Titanium & Steel Gear Brushless Servo
- SKU:
- B3S
- UPC:
- 6929188003006
- Condition:
- New
Description
Torque(6.0V): 30.0 kg-cm (416.6 oz/in)
Torque(7.4V): 35.0 kg-cm (486.1 oz/in)
Torque(8.4V): 40.0 kg-cm (555.5 oz/in)
Speed: 0.11 sec (6.0V) │ 0.095 sec (7.4V) │
Speed: 0.08 sec (8.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Weight: 67.0 g (2.36 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Brushless Motor
Gear Type:Titanium & Steel
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 333hz
Size:41.0 x 20.5 x 38.3 mm ( 1.61 x 0.81 x 1.51 in)
View AllClose
Torque(7.4V): 35.0 kg-cm (486.1 oz/in)
Torque(8.4V): 40.0 kg-cm (555.5 oz/in)
Speed: 0.11 sec (6.0V) │ 0.095 sec (7.4V) │
Speed: 0.08 sec (8.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Weight: 67.0 g (2.36 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Brushless Motor
Gear Type:Titanium & Steel
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 333hz
Size:41.0 x 20.5 x 38.3 mm ( 1.61 x 0.81 x 1.51 in)
1 Review
-
Power Hd B3s
Awesome servo! One of the best bang for the buck on the market. Great torque and speed for 1/8 buggy or truggy. Currently in a buggy for steering and no issues.
