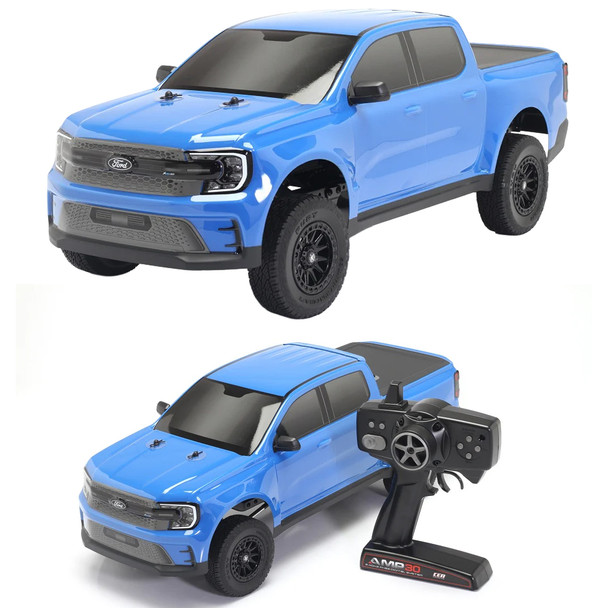

CEN Racing 8973 MS-RT FORD Ranger 1/10 RTR Custom On Road Truck Fast Blue

True 1/10 scale RTR

Item Number: 8972 (Cool Grey)

Ford Ranger MS-RT 1/10 Scale 4 wheels Drive Truck

Length: 21.65 inches (550mm)

Width: 9.1 inches (230mm)

Wheelbase:  12.95 inches (329mm)

Ground Clearance:  2.2inches (55mm).

Weight: 4.7 lb. 2.15 kg.

Available in two colors

Item: 8972 - MS-RT Cool Grey
Item: 8973 - MS-RT Fast Blue

* KG1 FORGED K0105F Adrenaline wheel.  52mm x 26mm

* 78mm Big Bore Oil Filled Adjustable Coil Over Shocks

* 60A WP-1060-Brushed ( HobbyWing)



ESC-60A WP-1060-Brushed (Powered by HobbyWing):

Water-proof and dust-proof for all weather
Built-In Capacitor Module
Automatic throttle range calibration
Low voltage cut-off protection for Li-Po (lithium polymer) and NiMH battery
Over-Heat protection and throttle signal loss protection
Easily programmed with jumpers
Motor-RS-550 high Torque Motor - Power By Mabuchi Motor

Servo -12Kg Servo O.E.M. by Savox:

4.8V 0.26 sec/60deg 10.0 kg-cm
6.0V 0.23 sec/60deg 12.0 kg-cm
25T Horn Gear Spline
Radio System:

Pistol-Grip AMP 30 3 Channel Transmitter
Digital Trimming
Steering Dual-Rate (ST D/R) Adjustment
End Point Adjustment (EPA)
Built in Failsafe


Chassis:

Steel Frame
- CMS (Chassis Mounted Servo) Chassis Design
- Stamped Steel Shock Hoops
- Steel Skid Plate.
- Full Precision Ball Bearing Support
- Adjustable Turnbuckles
- Steel skid Plate

Suspension:

78mm Big Bore Oil Filled Adjustable Coil Over Shocks.
12mm over size shock body with 3mm Hardened Steel Polished Shaft.
Harden Steel Steering Drag Link.
CNC Machined 6mm Aluminum Linkage.
Front / Rear Sway Bar.
Drivetrain:

Sway bar included
4 Wheel Drive
Center Shaft Drive Train for more power transferred to the wheels
Highly Efficient Transmission System
Wide Range Easy Changeable Gear Box Design
Sealed transmission eliminates dirt and dust
Sealed Axle housing
Sealed Transmission Case
5mm Hardened Steel Axle shaft
Differential Center Locker Front/Rear Planetary Gear Type
Metal Transmission Gears
Planetary Gear type Differential

Specs:

Length: 21.65 inch (550mm)
Width: 9.1 inch (230mm)
Wheelbase: 12.95 inch (329mm)
Ground Clearance: 2.2 inch (55mm)
Weight: 4.7 lb. 2.15kg

Gear Ratio:

Hi / Speed Ratio 1.56:1
Hi / Torque Ratio 2.8:1
Spur / Pinion Gear 32p85/32p10T
Ring & Pinion Gear30/15T 2:1
Tires:

Official Licensed Fury Tires

Country Hunter R/T Tire
46mm x 91mm x 31mm
Body:

Official Licensed by Ford Motor

Ford Ranger MS-RT
Scale Body Details
Injection Molding Mirror and Roof Spoiler

Battery:

Battery and Charger not included
