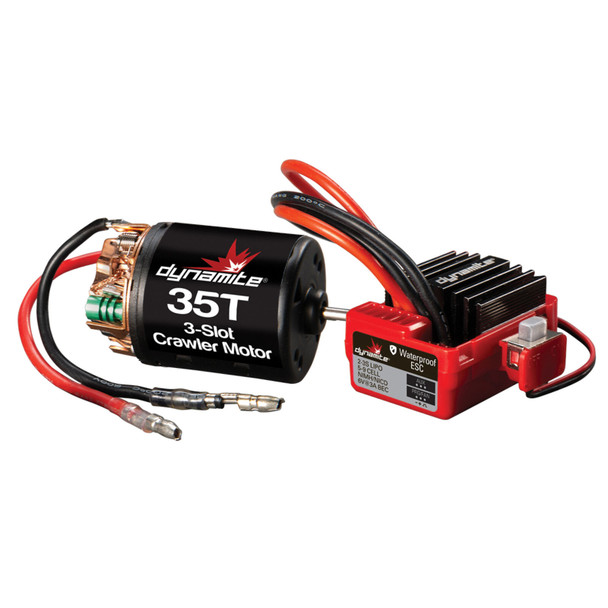

Dynamite DYNS0900 Brushed Crawler Motor/ESC Combo 35T / 3.5mm Bullet / EC3 Plug

This Dynamite® brushed crawler motor/ESC combo offers price sensitive enthusiasts the perfect arrangement for their crawlers. Additionally, the system is a great completion item for both kits and rollers. The combo includes a powerful, rebuildable 540 size 35 turn motor and a waterproof, NiMH/LiPo compatible, brushed ESC offering forward/brake/reverse, forward/brake and crawler drive modes. Additionally, it features "On the Fly" adjustable drag brakes with specific 3 channel radios. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC. As with all Dynamite power systems, motors and ESC's are available separately.

Component Specifications

Motor:
Motor dimensions:  36mm dia x 53mm L
Shaft dimensions:  1/8”/3.12mm x 12.5mm
Input voltage limit:  2S-3S LiPo/6-9cell NiMH
Bearings/Bushings:  Ball bearings

ESC:
Input Voltage:  2-3S LiPo, 6-9 Cells NiMH/NiCd
Size:  46.5x34x28.5mm
Weight:  68g
Motor Limit:  >12T 2S/ >18T 3S
On-Resistance FET:  .002
Continuous current:  40A
Rated/Peak Current:  180A
Braking Current:  90A
BEC Voltage:  6.0V 3.0A Peak
Connector:  IC3
PWM Frequency:  1KHz

Product Specifications
Adjustable Timing Yes
Brakes Electronic
Programmable Yes
BEC Continous Current 6V/3A
Product Weight ESC 2.4oz (68g) with wires
Shaft Diameter 1/8" (3.2mm)
BEC Yes
BEC Voltage 6V
Input Voltage 7.2 - 11.1V
Product Height ESC 1.1" (28.5mm)
BEC Type Shared between receiver, auxillary light ioutput and cooling fan
Motor Design Inrunner
Turns 35T
Outer Diameter 1.4 in (36mm)
Product Width ESC 1.3" (34mm)
Connector Type IC3
Product Length ESC 1.8" (46.5mm)
Bushing Or Bearing Bearing
Forward Yes
Reverse Yes
