Toyan Motor FS-L400 BGC 14CC DIY 4 Stroke 4 Cylinder RC Gasoline Engine Kit

TOYAN FS-L400BGC Upgraded Engine Kit
This is the newest upgraded FS-L400 Engine Kit! Requires full assembly.

Key Upgrades
Valve & Camshaft Upgrade
Advanced valve manufacturing extends lifespan by 3.5× compared with the TOYAN L400.
High-angle camshaft delivers sharper throttle response.
Carburetor & Intake Upgrade
Redesigned carburetor with precision fuel needle for easier startup.
Newly engineered intake manifold for smoother, user-friendly operation.
Oil Sump Upgrade
Enlarged sump for improved lubrication and easy upgrade to independent lubrication.
Integrated Crankshaft
90° phased crankshaft for smoother, more responsive operation.
Capable of reaching 13,500 RPM.
Crankshaft Support Bracket
Reinforced support frame improves strength and stability during high-speed runs.
Dual Synchronous Pulleys
Dual-pulley timing system minimizes tooth skipping under high RPM conditions.
Long Stroke & Dual Oil Seals
Dual oil-seal design prevents leakage and maintains stability at high speeds.
Realistic Simulation
Sports-inspired gold finish for a highly detailed scale engine look.
Operates on real gasoline for a true-to-life experience.
DIY Fun & Learning
High-precision parts for smooth assembly.
Gain hands-on experience and a deeper understanding of engine mechanics.

Specifications
Material: Metal
Brand: TOYAN
Model: FS-L400BGC
Form: Kit Version (assembly required)
Engine Type: Gasoline Internal Combustion
Valve Mechanism: OHC (Overhead Camshaft)
Displacement: 14cc (4 × 3.5cc)
Cylinders: Inline 4-Cylinder
Stroke: 4-Stroke
Bore Diameter: 16.6mm
Stroke Length: 17.0mm
RPM Range: 3200–13,500 rpm
Power Output: 3.05 hp
Cooling System: Water + Air Cooled
Lubrication: Splash (upgradable to independent)
Start Mechanism: Electric Start
Ignition: CDI Ignition
Spark Plug: 1/4-32 ME8 Type
Start Power Source: 6–12V (recommended 2S–3S LiPo)
Fuel Type: 92# Gasoline and above
Lubricating Oil: Common grease (applied to camshaft regularly)
Product Weight: 1250g
Dimensions: 16.35 × 5.05 × 10 cm
Package Dimensions: 21.5 × 21.5 × 17 cm
Package Weight: 1950g

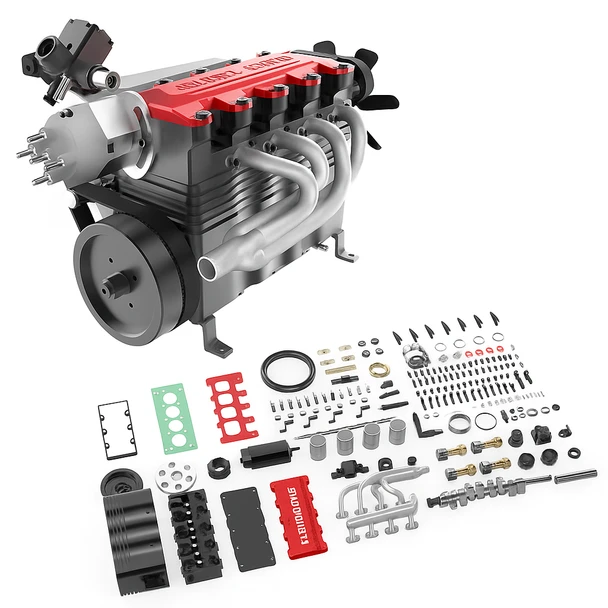

Package Includes
1 × TOYAN FS-L400BGC Engine Model Kit
1 × Tool Set for TOYAN Engine
1 × Instruction Manual

Important Notes
This is a KIT version that requires full assembly.
Does not include base, spark plugs, ignition system, or water-cooling accessories.
