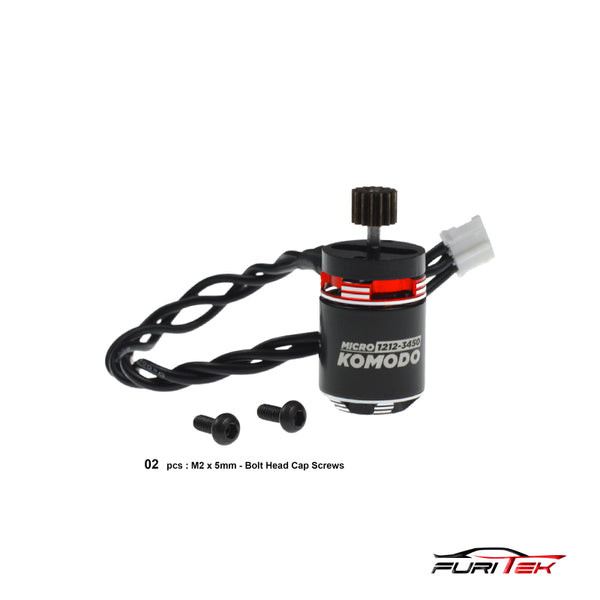

Furitek Micro Komodo 1212 3450Kv Brushless Motor w/15T Steel Pinion for FX118
- SKU:
- FUR-2424
- UPC:
- 8936037008998
- Condition:
- New
Description
Only compatible with: Furitek FX118
Features:
12 Pole hi-torque motor design.
Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
Japanese NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.
High purity and higher temperature single copper windings ---lower copper losses,
very good heat dissipating--maximizes efficiency.
Specifications:
KV (RPM/Motor) – 3450
No-load current @10V – 0.7A
Watt – 120W
Battery – 2-3S
Resistance – 0.16 Ohms
Max Current – 10A
Slot/Pole – 12
Motor size (mm) – 15.5x20.6
Shaft (mm) – 1.5x6
Weight (g) – 17.5
