Power HD

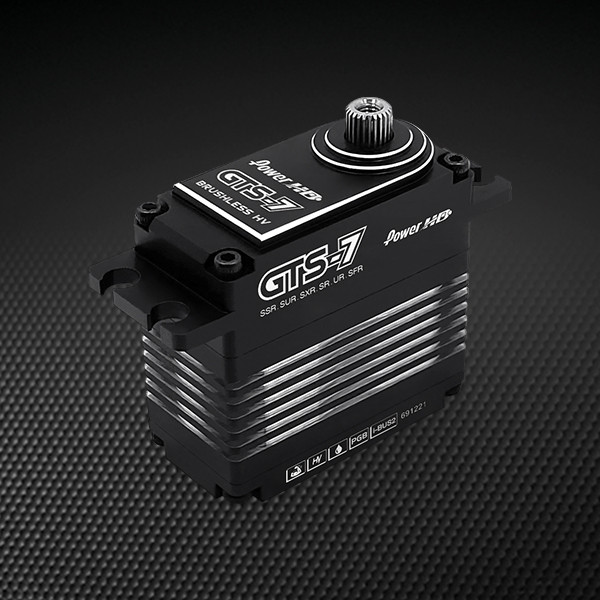

POWER HD GTS-7 HV Brushless Motor 972.1 oz / 0.10 Aluminum Gear Servo
- SKU:
- GTS-7
- UPC:
- 6929188077007
- Condition:
- New
Description
Torque(6.0V): 52.0 kg-cm / (722.1 oz/in)
Torque(7.4V): 66.0 kg-cm / (916.6 oz/in)
Torque(8.4V): 70.0 kg-cm / (972.1 oz/in)
Speed: 0.15 sec (6.0V) │ 0.12 sec (7.4V)
Speed: 0.10 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 78 g (2.75 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: 7075+Steel
Max current: 7.5A
Operating Temperature: -20℃~60℃
Working frequency: 1520μs / 1666hz
Size: 40.0 x 20.0 x 38.3 mm ( 1.57 x 0.79 x 1.51 in)
