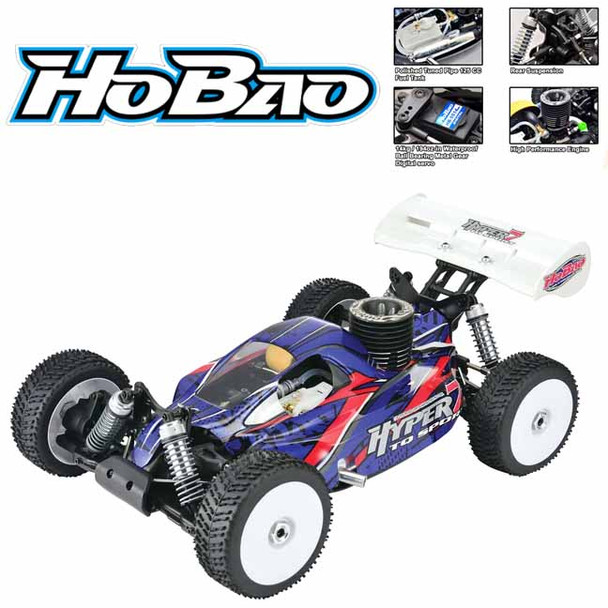

HoBao Racing 1/8 Hyper 7 TQ Sport Nitro Buggy Blue RTR w/ Radio / H-2802 Engine

HoBao Glow Powered, Radio Controlled, 1/8 scale, Ready to Run Hyper 7 TQ Sport Buggy with Blue Body.

FEATURES

Chassis: Aluminum 0.14" (3.5mm), gun metal gray in color, separate
plastic side guards
Drive: Four wheel shaft
Engine: Hobao Mac Star 28 with slide valve carb, Hobao T4 turbo
platinum glow plug, and large plastic pull-start handle
Exhaust: Aluminum tuned pipe with polished natural finish
Radio: HoBao HT-2.4EF 3-channel 2.4GHz FHSS with dual rate steering
and throttle, charge jack on transmitter for optional NiCd
batteries, high output digital steering and throttle servos
Servos: HoBao HB 5514 waterproof, metal gear, ball bearing equipped
digital servos, 194oz-in (14kg-cm) torque
Suspension: Front and rear lower composite suspension arms, front and
rear stabilizer bars
Shocks: Aluminum body 14mm oil-filled
Front Shock Tower: 0.16" (4mm) thick aluminum
Rear Shock Tower: 0.12" (3mm) thick aluminum
Fuel Tank: 4.2oz (125cc)
Clutch: Three shoe composite, 13 tooth steel clutch bell
Spur Gear: 46 tooth steel
Tires: High grip racing with foam inserts
Wheels: Revo style, black in color, 17mm hex
Body: Trimmed and printed with blue, yellow, red and white color
scheme
Brake: Dual disc
Caster: Adjustable, caster/toe-in refers to the angle of the
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

RTR Hyper 7 TQ Buggy with .28 cu in (4.6cc) Engine, 3-ch Radio,
Steering and Throttle Servos, black plastic Rear Wing, Decal Sheet
printed Body, Air Filter and Instruction Manual

AA Batteries: Twelve, 8 for radio, 4 for receiver
Nitro Fuel: Car blend with 15-30% nitro content, 30% required for
engine break-in
Track and maintenance equipment

Vehicle;
Length: 19.5" (495mm)
Width: 12" (305mm)
Height: 7.5" (190mm)
Wheelbase: 12.7" (322mm)
Weight: 7.71lbs (3500g)

Body;
Length: 13.75" (349mm)
Width: 8.6" (218mm)
Height: 3.8" (96mm)

Carburetor Needle Settings;
Factory Default After Break-In
Top End (high speed): 2-1/2 turns out 2-2-1/4 turns out
Bottom End (low speed) 1/2 turn out flush w/ball collar
Mid Range: Flush-do not touch Flush-do not touch
Idle Screw 1mm (1/16" ) 1mm (1/16" )
