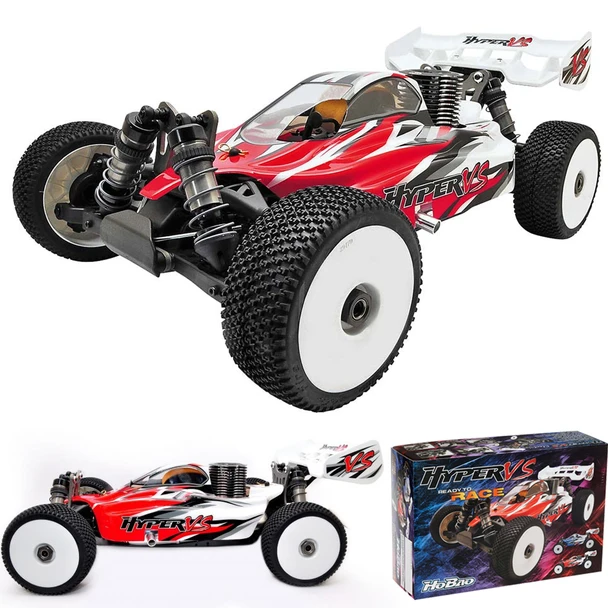

HoBao HB-VS-C30R 1/8 Hyper VS Buggy Nitro RTR Red Body w/ 30 Turbo Engine

Chassis: 0.12" (3mm) thick aluminum, with plastic side guards and
rear mud guards
Drive: Four wheel shaft
Differentials: Bevel gear type, front, rear and center
Radio: Hobao HT-2.4EF 3-channel 2.4GHz FHSS with dual rate steering
and throttle, charge jack on transmitter for optional NiCd
batteries, HB-5514 high output ball bearing, metal gear, digital
steering servo with 194oz-in (14kg-cm) torque
Engine: Hobao Hyper 30 with slide valve carb, Hobao T5 turb
platinum glow plug, and large plastic pull-start handle, two-stage
foam air filter
Exhaust: Tuned pipe, polished aluminum
Shocks: Oil-filled 17mm Big Bore, 4mm diameter shafts
Shock Towers: 0.16" (4mm) thick aluminum
Engine Mount: Two-piece aluminum heat sink design
Tuned Pipe: Aluminum, polished natural finish
Fuel Tank: 4.2oz (125cc)
Air Filter: Dual stage foam
Brake: Single disc
Clutch: 13T steel
Ball Bearings: Full set included
Suspension: Front & rear anti-roll bars, newly designed front C-hub
assembly, strengthened composite lower arms
Caster: Adjustable, caster/toe-in refers to the angle of the
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Body: 1/8 scale buggy painted and trimmed with white, red, black and
gray color scheme
Tires: L shaped tread with foam inserts
Wheels: Revo style, white in color, 17mm hex

RTR Hyper VS Buggy, Engine, Tires, Wheels, Shocks, Tuned Pipe,
Painted Body, Decals, Window Mask Sheet, White Plastic Wing, and
Instructions

AA Batteries: Twelve, 8 for radio, 4 for receiver
Nitro Fuel: Car blend with 15-30% nitro content, 30% required for
engine break-in
Glow starter building and track equipment

Vehicle-
Length: 15.98" (460mm)
Width: 12.04" (306mm)
Height: 5.5" (140mm)
Wheelbase: 12.67" (322mm)
Weight: 9.84lbs (3600g)
Body:
Length: 14" (356mm)
Width: 8.4" (213mm)
Height: 3.6"(92mm)
Carburetor Needle Settings;
Factory Default After Break-In
Top End (high speed): 3 turns out 2-1/2 turns out
Bottom End (low speed) 1/4 turn out flush w/ball collar
Mid Range: Flush-do not touch Flush-do not touch
Idle Screw 1mm (1/16" ) 1mm (1/16" )
