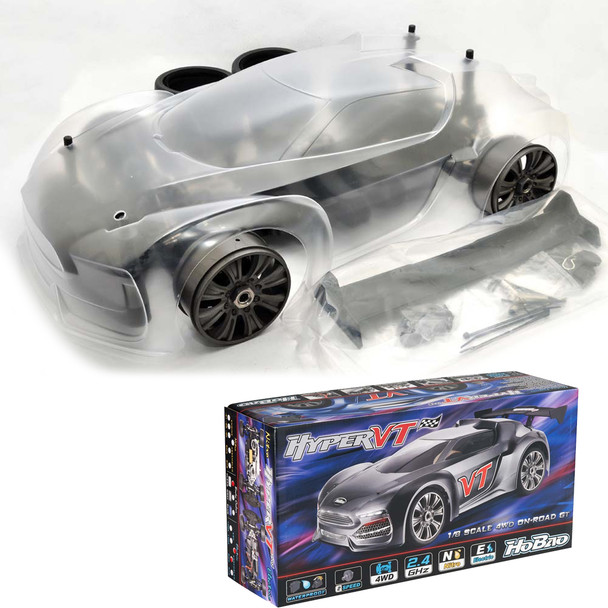

HoBao HB-VTE 1/8 Hyper VTE GT On-Road ARR w/ Clear Body

Conquer any course

• 4mm Front and rear anodized aluminum shock towers
• 17mm Big bore shocks with adjustable threaded bodies
• Adjustable toe-in, camber, shock position, and wheelbase
• Adjustable turnbuckles and Ackermann
• 3 Oil-filled differentials
• Rubber sealed bearings

• Front and rear adjustable sway bars
• Newly designed C-hub suspension with front CVAs
• Sealed receiver box with battery cover
• Multiple battery positions
• Revised rear mud guards, chassis braces, and lower arms
• Aluminum shock towers
• Steel spur gear

**This version is partially built and requires**
**Motor, ESC, Radio System, Battery, Charger and Paint for Body.**

Chassis: 0.14" (3.5mm) thick T6 aluminum, gun metal gray in color
CNC aluminum top plate
Drive: Four wheel shaft with lightweight center shaft
Differentials: Front, center and rear, Bevel gear type
Motor Mount: CNC aluminum, adjustable
Battery Box: Molded plastic, accomodates 2S, 3S and 4S LiPo packs,
three quick release hook and loop straps, dimensions-
5.5 x 1.8 x 1" (140 x 45.7 x 25.4mm)
Shocks: Oil-filled 17mm aluminum body Big Bore
Shock Towers: 0.16" (4mm) thick CNC aluminum
Pinion Gear: 16 tooth 32 pitch
Suspension: Front & rear anti-roll bars, CNC aluminum front
suspension block, newly designed front C-hub suspension with CVAs
Caster: Adjustable, caster/toe-in refers to the angle of the
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Body: Clear, trimmed wheel wells, and drilled body post holes, black
plastic high downforce GT wing
Tires: Slick rubber with foam inserts
Wheels: 1/8 scale on-road, gray in color, 17mm hex
Front Bumper: Foam

Hyper-VTE On-Road Car, Tires, Wheels, Shocks, Clear Body, Rear
48 tooth Main Gear, Wing and Instructions

Radio: 2-ch with high speed steering servo
Motor and Electronic Speed Control: For 1/8 scale on-road racing
Pinion Gear: 16-22T
Battery: 2-4S LiPo depending on motor and ESC selected
Battery Charger: To match selected battery
LiPo Charging Bag
AA Batteries: For transmitter, quantity depending on brand
Paint, building and maintenance equipment

Vehicle-
Length: 23.03" (585mm)
Width: 12" (305mm)
Height: 6.3" (160mm)
Wheelbase: 12.9" (330mm)
Weight: 7.5lbs (3415g)
Body:
Length: 15.3" (390mm)
Width: 12" (305mm) at front wheels, widest point
10.4" (265mm) behind front wheels, narrowest point
Height: 4.9" (124mm)
