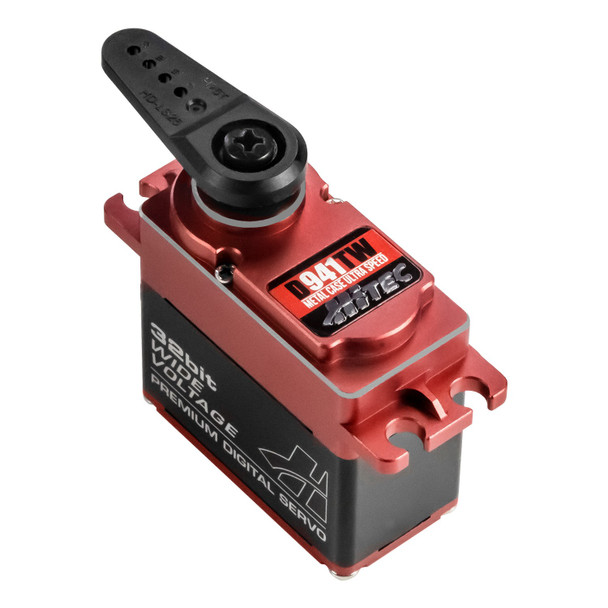

Hitec D941TW FMC High-Speed Titanium Gear 25T Servo

Hitec’s D-Series servo line sets new standards for advanced, programmable technology. Powered by their 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with extremely durable titanium gears; and the D941TW, D946TW and D951TW trio boast full metal cases. When you demand ultimate reliability and unprecedented advanced engineering, look to the power of the D-Series servos!

Features:

    High Response Circuitry
    Wide Voltage Capabilities
    32-Bit MCU Technology
    Full Programmability
    Smart Sense Technology for Servo Analytics
    25-Tooth Output Spline

Programmable Features:

    End Point Adjustments
    Direction
    Fail Safe
    Dead Band
    Speed (Slower)
    Soft Start Rate
    Overload Protection
    Data Save / Load
    Program Reset

Dimensions     1.57" x 0.79" x 1.50" (40 mm x 20 mm x 38 mm)
Product Weight     2.4 oz (68 g)
Output Shaft Style     25 tooth (H25T) spline
Voltage Range     4.8 V - 7.4 V
No-Load Speed (4.8V)     0.11 sec/60°
No-Load Speed (6.0V)     0.08 sec/60°
No-Load Speed (7.4V)     0.07 sec/60°
Stall Torque (4.8V)     139 oz-in. (10.0 kg.cm)
Stall Torque (6.0V)     187 oz-in. (13.5 kg.cm)
Stall Torque (7.4V)     229 oz-in. (16.5 kg.cm)
Max PWM Signal Range (Standard)     750-2250 μsec
Max Travel (out of box)     120°
Pulse Amplitude     3-5 V
Operating Temperature     -20°C to +60°C
Continuous Rotation Modifiable     Yes
Direction w/ Increasing PWM Signal     Clockwise
Deadband Width     1 µs
Motor Type     Coreless
Feedback Style     5KΩ Potentiometer
Output Shaft Support     Dual Ball Bearings
Gear Type     Straight Cut Spur
Gear Material     Titanium
Wire Length     11.81" (300 mm)
Wire Gauge     20 AWG
