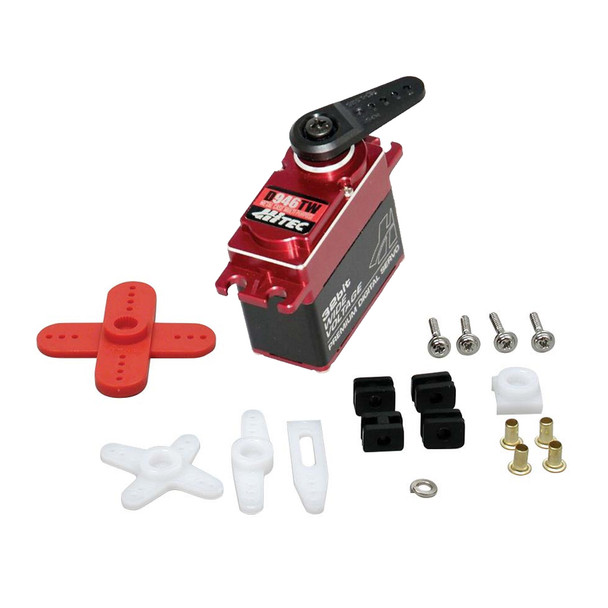

Hitec D946TW FMC Multi-Purpose Titanium Gear 25T Servo 36946

Smart Sense Technology for servo analytics
Durable titanium alloy metal gears with dual ball bearings
Ultra hard gear shaft with three axial metal bushings
32-bit MCU and 12-bit ADC for unprecedented programmability and
flexibility
*Programmable digital amplifier with MOSFET drive, programmable
functions include End Point Adjustments, Direction, Fail Safe,
Dead Band, Speed (slower), Soft Start Rate, Overload Protection
Data Save/Load, Program Reset
Water and dust resistant (splash proof)
Metal case

Hitec D-Series Dynamo D-946TW 32 Bit Aluminum Case Titanium Gear
Servo
0.98" (25mm) Single Arm
1.7" (44mm) Double Arm
1.5" (38mm) 4-Point Horn
1.4" (36mm) Round Horn
Four each Grommets, Eylets and Mounting Screws
Metal Adapter Ring

4.8V 6.0V 7.4V
Speed: 0.16 0.12 0.10 sec/60°
Torque: 194 250 319 oz-in
14 18 23 kg-cm
Motor Type: Coreless Metal Brush
Current Draw at Idle: 30mA
No Load Operating Current Draw: 470mA
Stall Current Draw: 6,200mA
Dimensions: 1.57 x 0.79 x 1.50" (40 x 20 x 38mm)
Weight: 2.40 oz (68.0g)
Number of Teeth on Output Spline: 25
Diameter of Horn Screw: 3mm
Dead Band Width: 1 µs
Connector Gauge (AWG)/Strand Count: 20/80
