Kadee 918 Long Coupler Straight Center Set w/Body Mount Gearboxes Black G Scale

This industry-leading coupler features New Generation AAR Type "E" Head Straight Centerset Shank Long Couplers, and #878 G Scale centering spring, complete with #910 Body Mount Gearboxes and lids.

Using a metal coupler directly on a metal surface or in a metal draft gearbox is not recommended to avoid possible electrical crossover and shorting that may cause damage.

One pair per package

G-Scale

AAR Type "E" Coupler
Simple Drop in Design
Hidden Knuckle Spring
Trouble Free Operation
Compatible with All Kadee® G-Scale Couplers
World-Renowned Quality & Performance
They just Last & Last & Last...
Patent number 7,810,660 B1

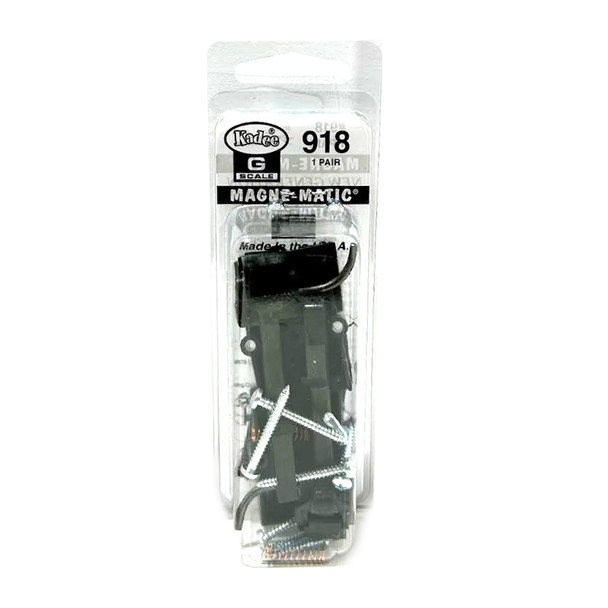

Package Includes:

(2) Each #918 Type New Generation AAR Type "E" - Straight Centerset Long Shank
(2) Each #910 Body Mount Gearbox & lids
(3) Each #878 Centering Springs
(4) Each #4 x 3/4" Screws
(4) Each #4 x 1" Screws

#918 Plastic Coupler Features:
Material -   Plastic
Shank Length -   (1 9/32") (Back of the Coupler Head to center hole of Draft Gearbox)
Coupler Offset -   Centerset
Centering Spring -  #878 G Scale Centering Springs
Head -  New Generation AAR Type "E" Head
Works With -   #910, #910R Draft Gearboxes

#910 Plastic Draft Gearboxes & Lids Features:
Material -   Plastic
Dimensions -  1 21/32"L x 15/32"W x 13/32"H
Works With -   #830, #906, #906R, & #930 Couplers

Mounting Specifications:
Mounting Height -   1 19/64"
Centerline -   1 1/8"
Trip Pin Height -   1/8"
Mounting Holes -   #4 Screws are the most commonly used. (Screw length will vary)
