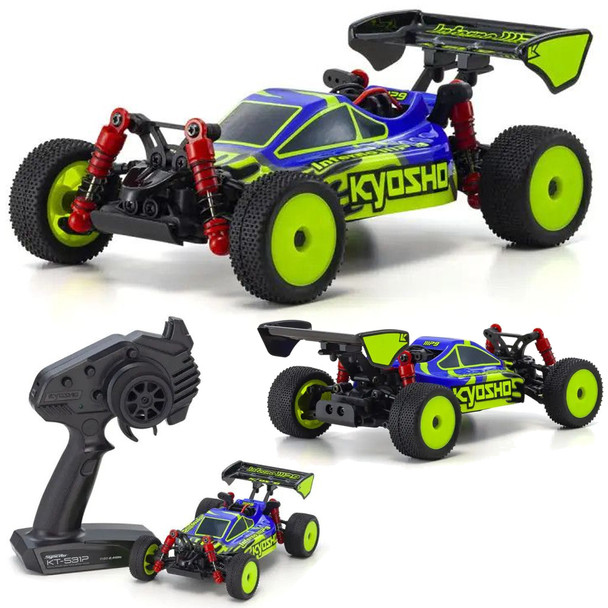

Kyosho 32093BLY 1/24 MINI-Z Buggy Ready Set INFERNO MP9 TKI Blue / Yellow

Real racing buggy performance sits on the palm of your hand.
The perfect first (or even second) R/C car!


Simply add eight AAA-size alkaline batteries to this Readyset and the MINI-Z Buggy brings the fun of R/C car action. The advanced compact design includes 4WD drive train with slipper clutch to protect the gear system, and 4-wheel independent double wishbone suspension with oil-filled shocks to deliver true racing buggy performance. Most critical components are protected within the high-rigidity dustproof chassis shell. 7-stage geared steering servo provides plenty of torque for precision steering response and combines with the control program to realize the MINI-Z’s signature linear handling and light feel. The circuit board also features manual left/right volume adjustment for the optional gyro unit (sold separately:No.MZW446) that stabilizes straight line running and improves cornering control. Modeled after the popular Inferno MP9, the MINI-Z buggy body matches performance with style featuring a distinctive new printed color scheme complimented by black wheels for the sharpest looking machine on the track. The fully pre-assembled Readyset package makes it simple and enjoyable for anyone to experience advanced R/C buggy performance, whether it’s your first car or as fun-driving second car.
※As the Readyset includes the Syncro KT-531P transmitter operating on FHSS 2.4GHz, it cannot be used with ASF/MHS/FHS 2.4GHz systems.

●Readyset package allows model to be enjoyed straight after purchasing batteries.
●Fully pre-assembled chassis with printed polycarbonate body.
●Real racing performance will please buggy owners. Great for indoor practice.
●Includes Syncro KT-531P transmitter. Allows various setting adjustments such as steering angle.
●FHSS 2.4GHz R/C system removes the need to manage frequency bands.
●Optional gyro unit set (sold separately:No.MZW446) can be installed. Gyro sensitivity can be manually adjusted on the chassis.
●Most optional parts already released for MINI-Z Buggy can be installed.

Shaft driven 4WD and 4-wheel independent suspension are condensed in the MINI-Z’s compact size. The chassis powers easily over small bumps and gaps.


Main parts including sealed diff gearbox are contained within the dust proof structure. 15 ball bearings and a slipper clutch make this machine ready for serious action.


Flat finish to underside of chassis is achieved with contours for each part shape. Efficient design allows tie-rods to be changed simply by removing the chassis cover.


Includes connector for optional gyro unit (sold separately:No.MZW446) and the tiny volume pot allows gyro unit’s sensitivity to be manually adjusted.


4-wheel independent double wishbone suspension equipped with oil shocks. Delivers surefooted road holding over a variety of different road surface conditions.


Realizes integrated coupling of drive shafts despite the constraints of its size. Also front suspension arms produce a 10-degree skid angle for improved rough-road performance.


Chassis features shell structure with battery boxes on each side. High rigidity extracts full effectiveness from the suspension.


Ready set includes KT-531P transmitter and other items. Requires only 4 batteries for the transmitter to start enjoying realistic buggy performance.

TECHNICAL DATA
■Length 167mm
■Width 106mm
■Height 68mm
■Wheelbase 115mm
■Tread (F/R) 89mm/89mm
■Tire(F/R) F37 x 13.5mm/F37 x 18.5mm
■Weight 200g (approx.)
■Motor 130 class
■R/C System KT-531P FHSS 2.4 GHz

KIT CONTENT
●Factory assembled chassis with pre-installed R/C unit
●KT-531P transmitter
●Pre-painted polycarbonate body finished with markings
●Pinion gears (11T, 13T, 15T)
●Spur gears (33T, 35T)
●Pinion gear tool
●Pairing stick
●Wheel wrench
●Spare nuts for wheels

REQUIREMENT TO RUN
●AAA alkaline batteries x 4 or NiMH batteries x 4 for chassis
●AAA alkaline batteries x 4 for KT-531P transmitter
