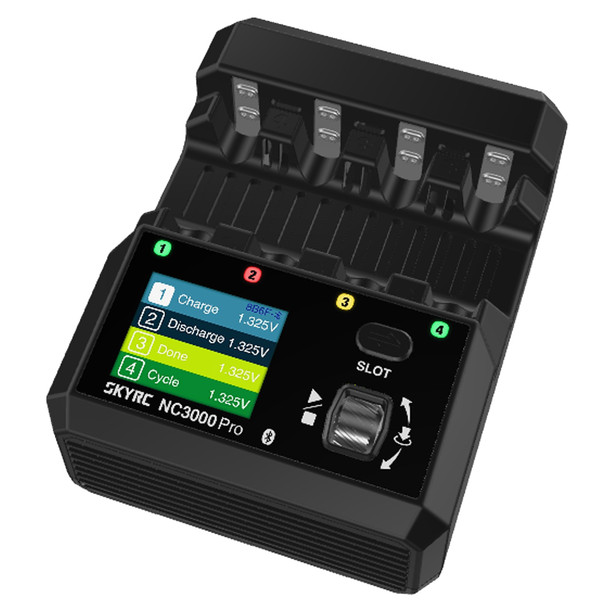

SKYRC NC3000 PRO AA/AAA NiMH/NiCD Battery Charger & Analyzer

Multifunctional four-channel charger/discharger providing complete and truly convenient care for your AA and AAA NiCd and NiMH rechargeable batteries. The charger's intelligent software takes care of your batteries from initial low-current formation, through regular (fast) charging or discharging, cyclic charging/discharging (up to 3 cycles), to the revival of long-term used or long-term stored cells. For power, you will need a USB-C power source with QC2.0, PD/QC3.0 protocol.

The NC3000 PRO allows you to charge or discharge up to four different AA or AAA rechargeable batteries simultaneously and independently. If you are charging four identical rechargeable batteries, simply set the parameters for one channel and then select simultaneous charging with the same parameters in all channels at the touch of a button. The parameters of the current process (charging/discharging current, charge/discharge level, battery voltage, internal resistance) are continuously displayed for all channels on the LCD.

The NC3000 PRO is equipped with a Bluetooth interface that allows you to monitor the charging/discharging process in numerical and graphical form, control the charger using a smartphone or other mobile device with an iOS or Android operating system, and update the charger's firmware.

The NC3000 PRO allows you to set the sensitivity of delta-peak detection, the end voltage for discharging and charging, and the charging time. You can also select the current modes - either constant current charging or automatic current adjustment according to the internal resistance of the battery being charged.

Detailed instructions describing the principles of proper charging and operation of NiMH and NiCd batteries will facilitate the operation of the charger and the use of your batteries.

Basic functions

Powered by a USB-C mains adapter with QC2.0, QC3.0, PD3.0 protocol, min. 30 W for full use of the charger's power
For charging and discharging up to four AA or AAA NiCd/NiMH cells
Adjustable charging current 0.2–3.0 A
Adjustable discharge current 0.2–2.5 A
Max. power for charging 22 W, for discharging 15 W
Charging and discharging, forming, cyclic charging/discharging, fast charging
Automatic delta-peak charging termination
Adjustable end voltage for discharging and charging
Adjustable delta-peak detection sensitivity 3–20 mV
Repeated cyclic charging/discharging or discharging/charging (up to 3 cycles) with adjustable delay between cycle phases
Charging or discharging termination when the set voltage, time or charge is exceeded
Battery conditioning (charging and discharging with low current)
Trickle charging 10–300 mA/off
Parameter setting and menu navigation via buttons on the charger or on a smartphone (iOS or Android operating system) via Bluetooth 5.0 interface
LCD with a simple and clear menu and parameter display during charging
Forced fan cooling
Compact, sturdy plastic housing

Display
Display Type: TN
Size: 1.77 inch
Panel Active Area: 43.20*57.60mm
Resolution: 160x128 Pixel
Number of Colors: 262K

Charge and Discharge
Input Power: PD, QC 30W
Quick Charge Protocol: QC2.0, QC3.0, PD3.0
Battery Type: NiMH/NiCD
Battery Size: AA/AAA
Charge Power: Max. 22W
Discharge Power: Max. 15W
Charge Rate: 0.20-3.00A
Discharge Rate: 0.20-2.50A
Trickle Charge Rate: 10-300mA
Target Volt.: 1.47-1.80V
Discharge Cut-Off Volt.: 0.50-1.10V
Supported Capacity: 100-5000mAh
-△V: 1-20mV

Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 5%-75%
Storage temperature: -10℃-70℃
Storage humidity: 5%-75%
