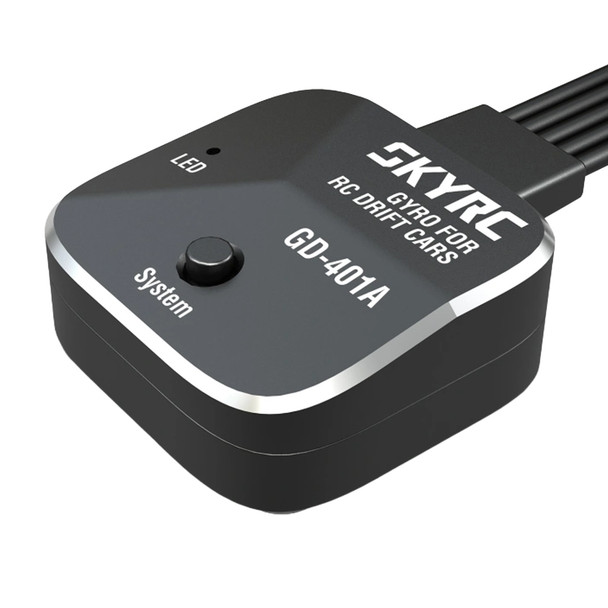

SkyRC GD-401A Gyro for RC Drift Cars

Features:
CNC aluminum. Tough, elegant, heat-efficient.
Optimized sensitivity and gain algorithms ensure accurate, responsive control.
Adjustable servo travel with 180° endpoint setting.
Integrated cable. One-button setup. Easy install.
9 curves for various drift scenarios.
One-touch reverse setup with 5-second steering direction correction.

From Core to Curve
A 32-bit processor works seamlessly with the high-precision MEMS gyro to calculate and correct every deviation—delivering control that feels natural and fluid.
Tuned for RWD drift cars with 9 preset curves, and compatible with touring, rally, and short course models.

9 Preset Curves. For Every Drift.
From smooth to sharp, GD-401A’s 9 preset curves adapt to your driving style—beginner or pro.
A single button cycles through modes (1–9).
At startup, green LED flashes display the selected curve.
Adapt to every track. Match every drift.

Sense and Stability
This gyro continuously detects and corrects steering deviations, delivering smoother handling and a more focused driving experience.

Dial-In Your Endpoints
Take full control with EPA (End Point Adjustment), fine-tuning servo travel within its 180° range to avoid interference and oversteer.
Precision, simplified. Every turn, just right!

Different Mount, Same Control
Different chassis, different layouts—sometimes your control logic ends up reversed. With one-touch reverse setup, the gyro adapts automatically to your installation. No second-guessing directions—just focus on nailing every corner with precision.

LED Status at a Glance.
Red LED Flashing: No signal received; transmitter may not be powered on.
Solid Green LED: Transmitter disconnected.
Flashing Green LED: Indicates the current curve level. The LED flashes in a loop from 1 to 9 times to show the active curve.

Discreet. Durable. Designed to Fit.
So compact, it virtually disappears into your chassis—lightweight, seamless, and never in the way during assembly or wiring. CNC-machined aluminum provides rigidity and efficient cooling, all wrapped in a premium finish that feels as refined as it looks.

Specifications:
Size: 22x21x9mm
Weight: Approx. 12g
Case Material: 6063 Aluminum
Input Signal: PWM (50–333Hz)
Operating Voltage: 4.8V–7.4V
Output Signal to Servo: 1520μs (50–333Hz)
Operating Current: 20mA @ 6V
Operating temperature: -10°C-40°C
Working humidity: 10%–90% RH, non-condensing
Storage temperature: -10°C–45°C
Storage humidity: 20%–65% RH, non-condensing
