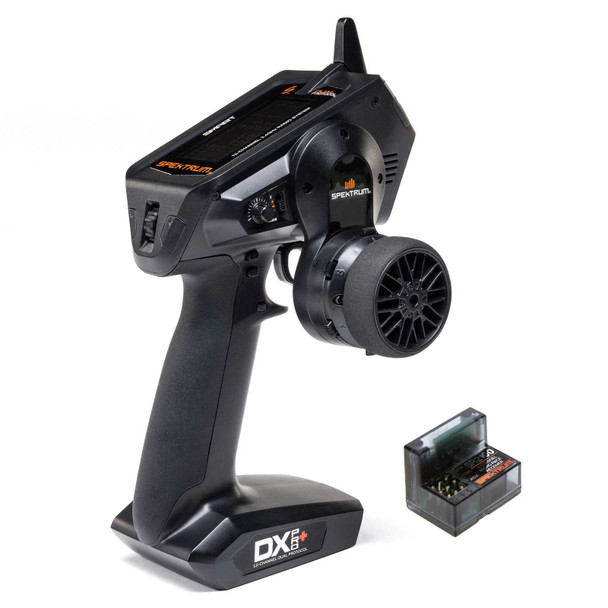

Spektrum SPM5035 DX Pro+ 12-Channel DSMR+ Transmitter w/ SR2100 Receiver

In The Box

Spektrum™ DX Pro+ DSMR+® 12-Channel Transmitter
1
Spektrum SR2100 DSMR 3-Channel Receiver
1
Product Manual
1

Needed to Complete

AA Transmitter Batteries
4

Features
Dual Protocol (DSMR/SLT) Compatibility
Twelve fully proportional channels with user-friendly steering and throttle mixes
Frequency-agile, Spektrum™ DSMR+® 2.4GHz technology
Smart Technology compatible out of the box
Ergonomic options for tailoring the transmitter to your feel
Multiple mixing setups including Motor on Axle (MOA)
5.5-Millisecond frame rate with compatible receivers
Advanced programming features, with SimpleScroll interface
Spektrum Smart Technology ready
Built-in telemetry
Programmable vibe alerts
250-Model memory
Compatible with DSMR and DSM2* receivers
LiPo battery upgrade available separately

Dual Protocol (SLT/DSMR) Compatible
The DX Pro+ is compatible and able to bind with SLT protocol equipped vehicles, such as the Losi NASCAR RC Racecars, ARRMA GROM small-scale bashers and Axial SCX24 micro crawlers. With this transmitter, you'll be able to drive SLT and DSMR protocol receivers with one transmitter. Dual Protocol means one perfect control.

12-Channels
12-fully proportional channels allow for more flexibility and versatile control for auxiliary systems such as winches, lights, etc. It's also physically lightweight so that there's less fatigue on you during long trips, plus it's easy to transport with all your rigs.

Frequency-Agile DSMR+® Technology
The DX Pro+ is built around frequency-agile DSMR+ 2.4GHz technology. This exclusive Spektrum™ technology can be used in any surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb. New features of the 'plus' include the ability for users to do many different mixes, change inputs and do other advanced programming. New mixes include Throttle Mixes, Absolute travel support, Emergency brake feature, Logical, combo, and analog switch support. Additionally, it supports both DRIVE and MS6X Technology. It's also backward compatible with DSM2® and marine-specific Spektrum receivers. This means most longtime Spektrum users can continue using their existing receivers.

AVC® (Active Vehicle Control™) Programming
The DX Pro+ makes it possible to custom tune the AVC system by providing easy-access to dedicated adjustments. In addition, open channels of the DX Pro+ can be used to adjust the AVC steering and throttle systems independently. No matter what you're driving, AVC technology can easily meet your skill level or driving style with control that makes it feel like you're driving a finely tuned vehicle that handles beautifully at every speed.

Spektrum SR2100 DSMR Receiver Included
Built around frequency-agile DSMR® technology, the SR2100 - updated for Smart telemetry compatibility - consistently delivers superb range and a lightning-fast 5.5ms frame rate, even where many 2.4GHz systems are in use at once. It has an incredibly small footprint with an internal antenna that eliminates the need for external antenna tube support, so it mounts easily on most chassis.

Smart Technology Compatible
When combined with Spektrum Firma Smart ESCs and Spektrum Smart capable receivers, the DX Pro+ receives telemetry data right to your transmitter through the Smart Throttle port on the receiver. Smart Throttle ESCs can send RPM, speed, ESC temp, volts and amp draw.

ApplicationCars, Crawlers, Trucks, Buggies and Boat
• AudioAlarms and Tones
• Band2.4GHz
• Channels12
• Color ScreenNo
• Completion LevelTransmitter and Receiver
• FailsafeYes
• Frame Rate11ms, 16.5ms, 22ms, 5.5ms
• Input Voltage4 - 8.4V
• Left / Right Hand OperationNo
• Model Memory250
• ModulationDSMR+
• Operating SystemRaceware

• Product Height5.3" (135 mm)
• Product Length8.3" (211 mm)
• Product Weight1.4lbs (0.63 Kg)
• Product Width5.6" (142 mm)
• ProgrammableYes
• RangeFull
• Rate Positions3 POS
• ReceiverIncluded
• TechnologyAVC, DSMR+, Smart
• TelemetryYes
• Transmitter (Tx) Battery TypeAA batteries
• WiFiNo
