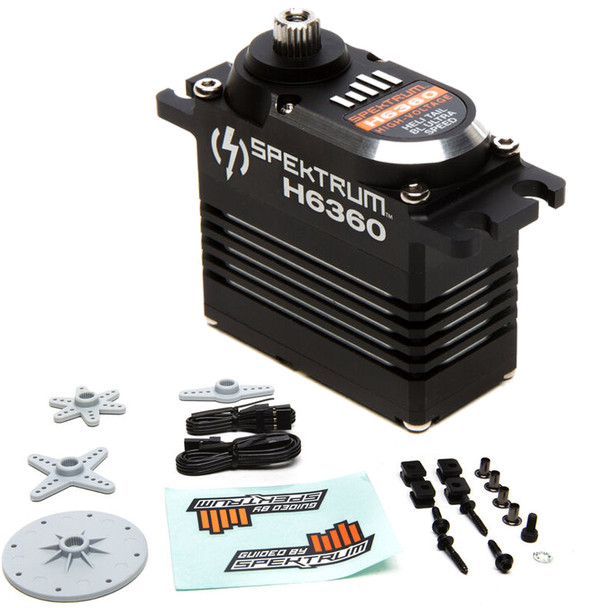

Spektrum H6360 Standard Digital HV Brushless Mid Torque Ultra Speed Heli Tail Servo

Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, blindingly fast performance more efficiently than servos with conventional motors. Heavy-duty servo lead-wire includes the convenience of a quick-release cable connection. The all-aluminum case provides the ultimate solution in durability and heat dissipation. Precision metal gears satisfy even the most critical heli pilot who wants hassle-free control.

The Spektrum H6360 tail servo uses this solid foundation, to achieve blinding transit speeds of .04 sec with an outstanding balance of durability and value, in addition to the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding tail-rotor control choice for of 550- to 700-class electric and nitro helis.

Product Specifications

Application Heli Cyclic
Bearing Dual
Bushing Or Bearing Bearing
Connector Type Universal
Connector Wire Length 6 in and 12 in
Deadband 2 - 3 ?s
Gear Material Metal
Gear Type Metal
Maximum Servo Speed 0.001-0.049 sec
Maximum Servo Torque 100-199 oz-in
Motor Type Brushless
Product Height 1.49 in (37.8mm)
Product Length 1.57 in (40mm)
Product Weight 2.6 oz (73.6 g)
Product Width 0.79 in (20mm)
Programmable No
Servo Operating Voltage 6.0 - 8.4V (HV)
Servo Size Category Standard
Servo Type Digital
Speed 0.04 sec/60 deg @ 8.4V
Spline Count 23 Teeth
Torque 104.9 oz-in (7.56 kg-cm) @ 8.4V
Wire Gauge 22 AWG
