Spektrum S7110 Servo Winch for 1/10 Rock Crawlers SPMSS7110

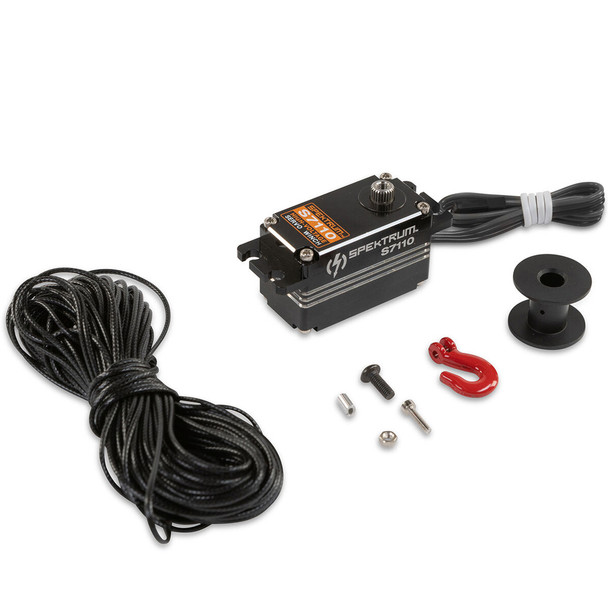

In The Box
(1) S7110 High Voltage Servo Winch
(1) Scale recovery hook
(1) Aluminum spool
(1) 7’ Fiber line

Features
Design for 1/10th Scalers and Crawlers
6V to 8.4V Operating Voltage
Durable and long-lasting brushless motor
High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
All Aluminum servo case for heat dissipation
7' feet of line with scale recovery hook included
Built-in Integrated brushless controller for easy set up and installation
Precise metal internal gears
Waterproof
25 teeth output shaft
Includes everything needed to start winching

Overview
The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.

Product Specifications
Input Voltage 6.0V ~ 8.4V
Product Height 0.99" (25 mm)
Servo Type Digital
Application 1/10 Rock Crawlers- Winch
Product Weight 2oz (57g)
Spline Count 25 - Tooth
Connector Wire Length 7.48" (190 mm)
Current Draw Idle 2mA
Product Width 0.8" (20 mm)
Current Draw Stall 1.6A @ 6.0V, 1.8A @ 7.4V, 2A @ 8.4V
Servo Operating Voltage 6.0 - 8.4V (HV)
Maximum Servo Torque 130oz/in @ 6.0V, 160oz/in @ 7.4V, 180oz/in @ 8.4V
Rotation Range 360 Degree Continuous
Wire Gauge 22 AWG
Programmable No
Servo Size Category Standard
Gear Type Metal
Connector Type Universal
Maximum Servo Speed 123RPM @ 6.0V, 155RPM @ 7.4V
Bearing Ball Bearing
Product Length 1.59" (40 mm)
Bushing Or Bearing Bearing
