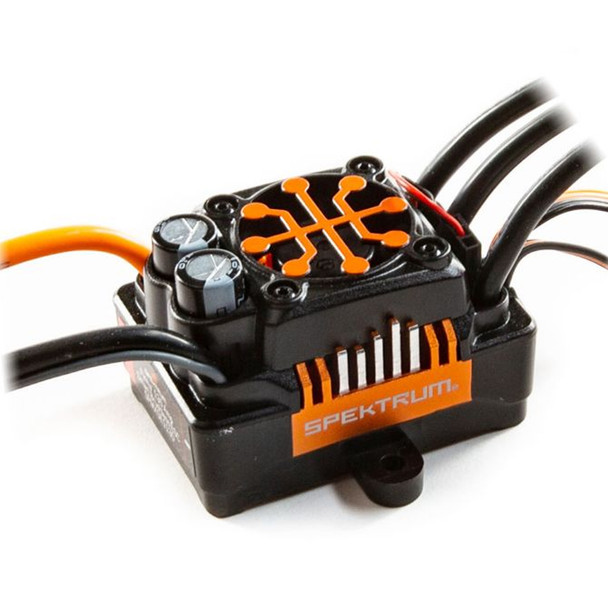

Spektrum SPMXSE1130 Firma 130 Amp Brushless Smart ESC

Needed to Complete
Spektrum™ Surface Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter

What's in the Box?
(1) Spektrum™ Firma™ Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Specs:
Auto Cutoff:    Yes
BEC:    Yes
BEC Continous Current:    4A
BEC Type:    Linear
BEC Voltage:    6V
Battery Connector:    IC5 (Compatible with both IC5 and EC5)
Battery Input Lead:    6.3" (160mm) 12AWG
Brakes:    Yes
Forward:    Yes
Height:    1.5" (38mm)
Input Voltage:    2S - 4S LiPo
Length:    2.2" (57mm)
Low-Voltage Cutoff Programmable:    Yes
Maximum Burst Current:    760A
Maximum Continuous Current:    130A
Motor Connector:    4mm Female Bullet
Motor Output Lead:    5.9" (150mm) 12AWG
Overload Protection:    Yes (Thermal protection as well)
Reverse:    Yes
Sensored:    No
Weight:    4.4oz (126g)
Width:    1.4" (37mm)
