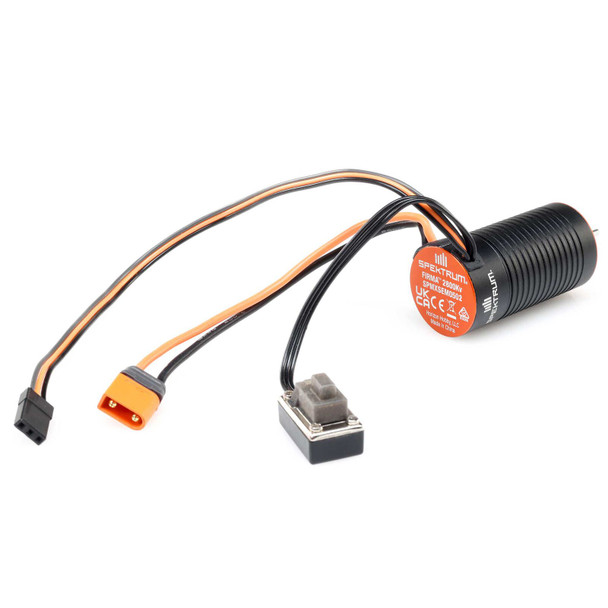

Spektrum SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo

(No reviews yet) Write a Review
SKU:
SPMXSEM0502
UPC:
660132884222
Condition:
New
  • Spektrum SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo
  • Spektrum SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo
  • Spektrum SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo
  • Spektrum SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo
  • Spektrum SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo
  • Spektrum SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo
  • Spektrum SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo
  • Spektrum SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo
  • Spektrum SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo
$79.99

Description

In The Box
(1) Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo

The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and Motor 2-in-1 Combo is waterproof* and designed specifically for the Axial UTB18 Capra 4WS, 1/18 4WD. This ESC and motor combo will take your excitement to the next level!

The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and Motor 2-in-1 Combo is waterproof* and designed specifically for the Axial UTB18 Capra 4WS, 1/18 4WD. It features a high-precision magnetic encoder and rotor position sensor that provides an excellent one-to-one control feel when driving at any speed and at any angle. This advancement in sensored motor control allows the ESC to match the throttle input to the motor’s RPM with unmatched precision.

This ESC and motor 2-in-1 combo is an excellent choice to upgrade your Axial UTB18 Capra 4WS, 1/18 4WD running 2S or 3S LiPo power. This combo is the perfect system whether you are adventuring on trails or entering in competition.

Features
Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Includes high-performance Spektrum Firma 2800Kv Sensored Brushless Motor
Waterproof* (See instructions for details)
Compact for easy installation in most applications
Ready to install — no soldering required
Aluminum construction helps with heat dissipation
Adjustable high-power BEC



    Product Specs:

Application
1/16-1/18 Rock Crawler
BEC Continous Current
4A
BEC Voltage
6V/7.4V Adjustable
Connector Type
IC2
LiPo Compatibility
2S, 3S
Maximum Continuous Current
30A /80A
Motor Size
Motor Diameter: 24 mm Length: 45.8 mm
Motor Type
Brushless
Number of Cells
2-3S LiPo, 6-9 Cells NiMH
Number of Poles
4
Product Application
Crawling
Product Height
2" (51 mm)
Product Length
4.2" (107 mm)
Product Weight
2.7oz
Product Width
3" (76 mm)
RPM/Volt (Kv)
2800Kv
Sensored
Yes
Shaft Diameter
2.3" (58 mm)
Shaft Length
0.54" (13.7 mm)
