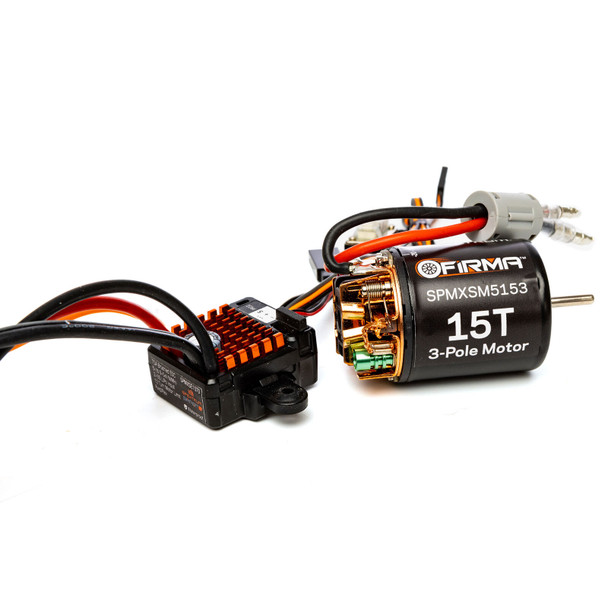

Spektrum SPMXSEMC10 Firma 70A Brushed Smart ESC 2S-3S IC3 / 15T Motor Combo

In The Box
(1) Spektrum Firma 70A Brushed Smart ESC
(1) Spektrum Firma 35T Rebuildable 3-Pole Brushed Motor
(1) Product Manual

 Needed to Complete
Spektrum™ Surface Receiver
2S or 3S Lipo Battery with EC3 or IC3 Connector
Spektrum Transmitter

Features
Smart all-in-one telemetry
Full Smart functionality
Provides Spektrum Smart battery data, input voltage, esc temperature, esc amperage, RPM, and Text Gen Telemetry data over one wire. No additional sensors required
Includes Spektrum 15T Rebuildable Brushed Motor – Excellent completion option for 1/10 scale on-road and off-road racers running 2S power
Integrated LED light power outputs for simple installation without the need of additional receiver ports
Includes 2 LED Light Strings (Red and White)
70 Amp continuous power - excellent for 1/10 scale on-road and off-road racing and 1/10 scale crawlers and scalers
2S-3S LiPo Compatible
Waterproof ESC*
Multiple options for easy programming:
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Programming from Transmitter via Text Gen Telemetry
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install — no soldering required
Aluminum heat sink for high efficiency
Adjustable high-power BEC (6V or 7.4V, 4amp)
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty

The Spektrum™ Firma 70 amp Brushed Smart ESC and motor combo is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers and bashers.

This ESC and Motor Combo is an excellent choice to complete your 1/10th scale on-road and off-road 2WD racing models running 2S LiPo power. Plenty of speed and tunability for carpet, drift, or asphalt on road racing as with the durability needed for 1/10th off-road racing and bashing.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as motor current, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

INCLUDES SPEKTRUM 15 TURN BRUSHED REBUILDABLE MOTOR WITH ADJUSTABLE TIMING
The Spektrum Firma 3-Pole Rebuildable Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th Racers and Bashers. Featuring fully rebuildable design, impressive high rpm speed and control, and excellent efficiency.

Adjustable timing for clockwise and counterclockwise motor rotation
540 can size – perfect upgrade for most 1/10th scale
Pre-shaped curved face brushes – No break-in period required!
Wires and 3.5mm bullets installed – No soldering required!
Ball bearing supported rotor

PRO-LEVEL DRAG BRAKE ADJUSTMENT
The Spektrum Firma 70 amp Brushed Smart ESC features a huge range of drag brake adjustability, allowing for drivers to expertly tune their models depending on their driven train and vehicle weight. Featuring fine levels of adjustability for Drag Brake Percentage and Drag Brake Rate that is perfect for tuning your crawlers and scalers for expert level rock crawling performance.


WATERPROOF
The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

ONE-WIRE TELEMETRY
No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including voltage, temperature, balance, capacity, and motor current.*

MULTIPLE PROGRAMMING OPTIONS
Multiple programming options are available. Using the Smart Firma™ ESC Programming Box, you can easily change settings on the trail to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available. And for those with a Text Gen capable, programming and adjustment of ESC settings can be performed, right from your Spektrum transmitter, no additional modules or wires needed!

SMART TECHNOLOGY BATTERY DATA
When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery capacity used and remaining, individual cell voltage and more!

Product Specifications
Turns 15T
Connector Type IC3, 3.5mm Bullet
Product Length 1.41" (36 mm)
Adjustable Timing No
Brakes Integrated with ESC
Auto Cutoff Yes
BEC Continous Current 4A (Shared Between Receiver and Aux Light Outputs)
Low-Voltage Cutoff Programmable Yes
Number of Poles 3
Product Weight 1.76 oz (50 g)
Water-Resistant Yes
Maximum Burst Current 200A
Maximum Continuous Current 70A
Amperage 70A
Motor Type Brushed
Speed Control Included
Forward Yes
Reverse Yes
Product Width 1.18" (30 mm)
Technology Smart
Programmable Yes
BEC Yes
BEC Voltage 6V / 7.4V User Selectable
Input Voltage 2–3 Cell Li-Po / Li-Fe; 5–9 Cell Ni-MH / Ni-Cd
Motor Limit 540 / 550 Size Brushed Motors
Product Height 0.71" (18 mm)
