Spektrum

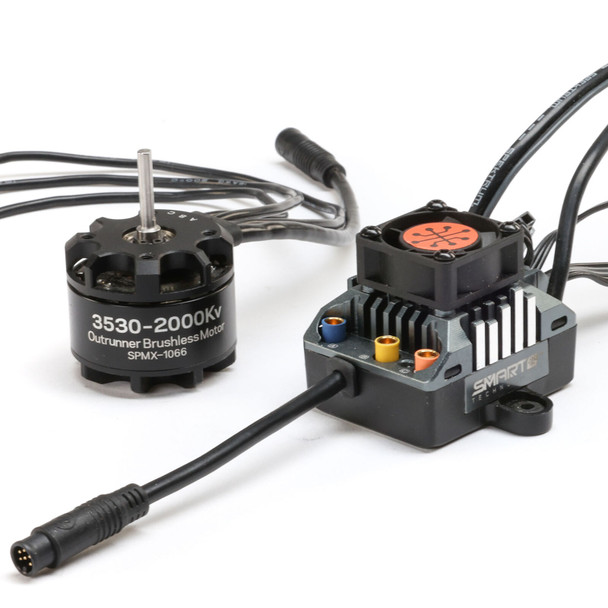

Spektrum SPMXSEMC22 Firma 1/10 Smart Sensored Outrunner Motor / ESC 2-in-1 Combo: 2000Kv
- SKU:
- SPMXSEMC22
- UPC:
- 660132888299
- Condition:
- New
Description
Firma 60A Brushless Sensored Smart ESC,Outrunner (SPMXSE2060S)
1
Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm (SPMX-1066)
1
Firma 1/10 Smart Sensored Outrunner Motor / ESC 2-in-1 Combo: 2000Kv Overview
The Spektrum™ Smart 1/10 Sensored Outrunner 2000Kv Motor/ESC Combo is the perfect choice for your crawler or scaler models running on 2-4S LiPo power. This combo features a low-cog, 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed for 1/10 crawlers and scalers to provide ultra-smooth low speed control and performance and reliability. The Motor/ESC combo includes preinstalled 3.5mm gold-plated bullet connectors for easy installation. Furthermore, the included SPMX-1066 motor is perfectly matched for the included Firma 80A Smart ESC (SPMXSE2060S).
Firma 1/10 Smart Sensored Outrunner Motor / ESC 2-in-1 Combo: 2000Kv
Features
Smart All-In-One Telemetry
Enable/Disable Drag Brake From Compatible Spektrum Transmitters
Fast, Powerful 32-Bit ARM M4 Processor
Multiple Programming Options
Multi-Point Protection
Waterproof (See Instructions For Details)
2-3S LiPo Power Compatible
12-pole Outrunner
3.175mm Output Shaft
Pre-installed 3.5mm Gold-plated Bullet Connectors
Firma 1/10 Smart Sensored Outrunner Motor / ESC 2-in-1 Combo: 2000Kv
Product Specs
- Auto CutoffYes
- BEC Voltage6V/7.4V at 6A
- BrakesYes
- Connector TypeIC3, 3.5mm Bullet
- ESC TypeSensored Brushless Ourunner
- ForwardYes
- Input Voltage2-4S LiPo
- LiPo Compatibility2S,4S
- Low-Voltage Cutoff ProgrammableYes
- Maximum Burst Current360A
- Maximum Continuous CurrentYes
- Motor Limit2000Kv (4S)
- Number of Poles12
- Overload ProtectionYes
- ReverseYes
- RPM/Volt (Kv)2000Kv
- Shaft Diameter3.175" (81 mm)
- Shaft Length18.5" (470 mm)
- TechnologySmart
