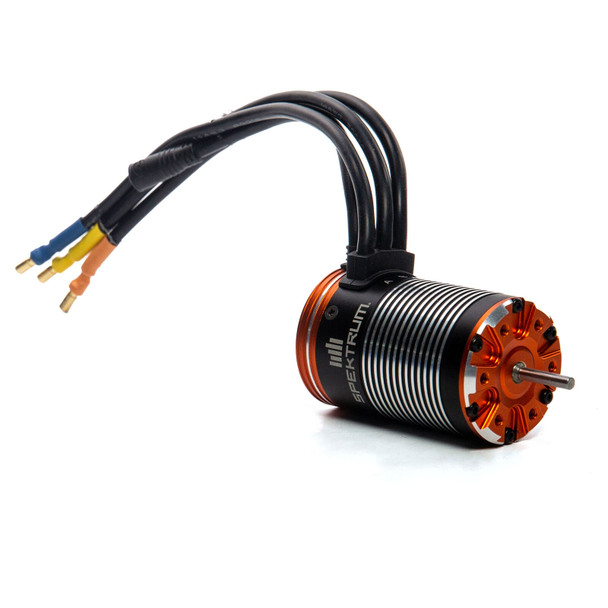

Spektrum SPMXSM3000 Firma 1400Kv Brushless Sensored Crawler Motor

The Firma 1400Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The Spektrum FIRMA 60A Sensored Brushless Smart Crawler ESC is required.

Features
Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
Perfect for low speed, high torque applications such as competition crawlers
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
3.5mm gold plated bullet connectors
Waterproof sensor wire with locking plug and gasket
High-quality construction with precision ball bearings and hardened steel 1/8" shaft

Product Specifications
Integrated ESC No
Constant Wattage 250-499W
Outer Diameter 1.42" (36 mm)
Maximum Continuous Current 25A
Connector Type 3.5mm Bullet
Motor Type Brushless
Reverse Yes
Forward Yes
Bushing Or Bearing Bearing
Application 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
Number of Poles 4
Shaft Diameter 0.125" (3 mm)
Water-Resistant Yes
Sensor Type Sensored FOC
Recommended Speed Control Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
Input Voltage 7.4 - 11.1V
Kv Rating 1250-1499Kv
Motor Output Lead 3.5
Product Application Crawling, Surface
RPM/Volt (Kv) 1400Kv
Sensored Yes
Motor Class 1/10 Scale
Motor Size 540-1400Kv Sensored Brushless
Product Length 2.27" (58 mm)
