Traxxas

Traxxas 5409 TRX 3.3 Multi-Shaft Racing Engine w/ Pull Start

(No reviews yet) Write a Review
SKU:
TRA5409
UPC:
020334540904
Condition:
New
MSRP: $220.00
$219.95
— You save $0.05

Description

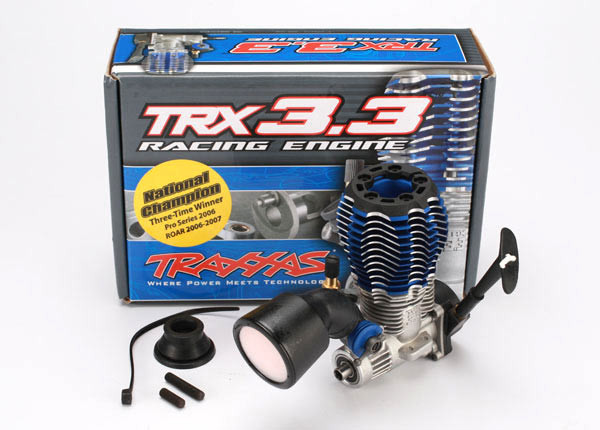

This is the Traxxas TRX 3.3 Multi Shaft Racing Engine with Pull Starter.
This version includes threaded crankshaft inserts for
"short" and "standard" applications.
FEATURES

For use in all Traxxas TRX2.5 and TRX 3.3 equipped vehicles
Pull starter can be removed to install the EZ Start
60% more peak power than the TRX2.5, with nearly 50% more power under the curve for strong linear acceleration
Two threaded crankshaft inserts for "short" and "standard" applications
Rear exhaust
Molded LCP (Liquid Crystal Polymer) body slide valve carburetor with high-volume air filter
Blue anodized aluminum cooling head with molded head protector

INCLUDES

Traxxas TRX 3.3 Multi Shaft Racing Engine with Pull Starter, glow plug, two crankshaft inserts, air filter, filter oil, setup DVD,
illustrated instruction manual

REQUIREMENTS

Fuel: Car fuel blend with 10-33% nitro content

SPECIFICATIONS

Displacement: .20 cu in (3.3cc)
Specs such as bore, stroke, RPM and horsepower are not provided,
contact Traxxas for further details
Weight: 10.6oz (300g)
Distance between mounting holes same side: 0.43" (11mm)
Distance between mounting holes opposite side: 1.2" (32mm)
Distance from center of engine to front bearing: 1.2" (32mm)
Distance/bottom of mounting flanges/top of cylinder head: 3.6" (92mm)
Distance /crankcase bottom to top of cylinder head: 44" (105mm)
Width of mounting flanges: 1.5" (39.5mm)
