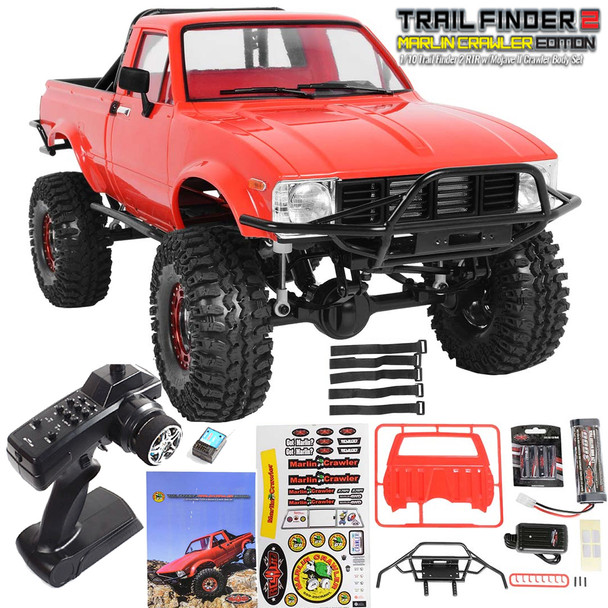

RC4WD Z-RTR0034 1/10 Marlin Crawlers Trail Finder 2 w/ Mojave II Body Set RTR

 The 1/10, electric Marlin Crawler Trail Finder II combines detailed styling with aggressive performance, so you can experience true all-terrain excitement! In addition to the licensed, realistic Marlin Crawler body, this RTR features a billet aluminum ladder frame chassis, a 45T 540 crawler motor, a waterproof Outcry II ESC, cast Yota II axles and Interco IROK tires.
Billet aluminum ladder frame chassis with adjustable shock hoops, servo mounts and hard body mounts.
Four wheel drive with steel universals, a plastic shaft for extreme driveline angles and a Hammer transfer case with cast metal exterior .8 Mod widened gears.
45T 540-size brushed motor.
Waterproof Outcry II ESC with built-in drag brake.
XR3 3-channel pistol grip radio with Twister high-torque metal gear digital steering servo that delivers 153 oz.-in. torque @ 6V. The third channel can be used to control accessories such as a winch (sold separately).
TF2 Marlin Crawler body with painted wipers, mirror, light details, door handles and dashboard.
Completely rebuildable, machined billet aluminum ultimate scale shocks with internal springs.
R3 single-speed transmission.
True-to-scale leaf spring suspension.
Cast Yota II 8° round knuckle axles with removable diff covers, lower mounting points and a compact offset front pumpkin.
Marlin Crawler tube-style bumpers.
Plastic driveshafts with steel yokes.
Locked differentials.
Ten-position adjustable motor mount.
Interco IROK 1.7" X2SS tires with soft and sticky compound.
0.98" (25 mm) wide, 1.9" (50 mm) outer diameter TRO stamped steel beadlock wheels with 12 mm hex and six-lug design.
6-cell 3000mAh NiMH battery.
Peak battery charger.

Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow or mud than the TF2 RTR. Part scale truck, part adventurer, your TF2 RTR is ready for your mud kicking trail-loving lifestyle!

The TF2 RTR has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 RTR. Performance of the TF2 RTR is smooth and with its single speed transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 RTR is truly a work of art in both appearance and performance.

Every TF2 RTR is compatible with a full range of options and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The TF2 RTR.

Your adventure awaits....

Yota II Ultimate Scale Cast Axles
Custom Designed for True to Scale Looks
Twister High Torque Metal Gear Digital Servo
Chassis Mounted Steering Servo
540 Crawler Brushed Motor 45T
Super Soft Flex Leaf Springs For TF2
Interco IROK 1.7'' Scale Tires
R3 Single Speed Transmission
Realistic Aluminum Ladder Frame Chassis
Center Mounted Realistic 4x4 Transfer Case
Outcry II Waterproof ESC
Plastic Fuel Cell Receiver Box
Superlift Superide 80MM Shock Absorbers
TRO 1.7" Stamped Steel Beadlock Wheels
6-Cell 3000MAH NiMH Battery Pack
NiMH Peak Battery Charger

Chassis: Billet aluminum ladder frame with adjustable shock hoops,
servo mounts and hard body mounts
Drive: Four wheel steel universals and new plastic shaft for extreme
driveline angles, Hammer transfer case with cast metal exterior
.8 Mod widened gears,
Driveshafts: Plastic with steel yokes
Axles: Cast Yota II 8° round knuckles, removable diff covers,
lower mounting points and a compact front offset pumpkin
Transmission: R3 single speed
Radio: 2.4GHz XR3 3-channel pistol grip, third channel can be used
to control accessories such as a winch (not included)
Steering Servo: Twister high torque metal gear digital, 153oz/in
of torque at 6V
Electronic Speed Control: Outcry II waterproof, built-in drag brake
Battery: 6-cell 3000mAh NiMH with Standard connector
Battery Charger: 110V wall charger
Motor: 540 size brush equipped 45 turn, sealed endbell for increased
durability
Motor Mount: Ten position adjustable
Differentials: Locked
Suspension: True to scale leaf spring
Shocks: Ultimate scale internally sprung, machined billet aluminum
construction, completely rebuildable
Wheels: TRO stamped steel beadlock, 12mm hex, 0.98" (25mm) wide
1.9" (50mm) outer diameter, six lug design
Tires: Interco IROK 1.7" X2SS soft and sticky compound
Body: TF2 Marlin Crawler with pre-painted wipers, mirror, light
details, door handles and dashboard
Bumpers: Marlin Crawlers tube style

Assembled Marlin Crawlers Trail Finder 2 w/Mojave II Crawler Body
Set, 3-ch Radio System, ESC, 45T Brushed Motor, Instruction
Manual, four AA Batteries

Track and Maintenance Equipment

Vehicle;
Wheelbase: 11.3" (287mm)
Width: 20" (512mm)
Height: 9" (230mm)
Ground Clearance: 2.83" (72mm)
Final Drive Ratio: 31.9:1
Weight: 6.45lbs (2.93kg)

R3 Single Speed Transmission;
Ratios Pinion/Spur 14/64 = 4.57:1
Internal Ratio = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles
Ratio: 15/40 = 2.67: 1
Width at Hex: 180.5mm

Body;
Length: 17.5" (444mm)
Width: 7.2" (183mm)
Height: 5.2" (132mm)
