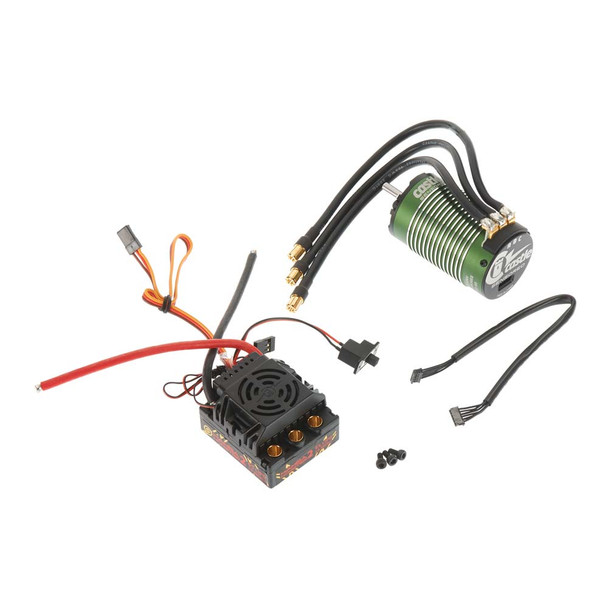

Castle Creations 1/8 Mamba Monster 2 WP ESC + 2650kV Sensored Brushless Motor Combo

**Sensored capabilities of this motor cannot be utilized with the**
**Mamba Monster 2 ESC. If sensored operation is required, a sensored**
**ESC such as the Mamba Monster X must be used.**

Intended for up to 4S (14.8 Volt) operation in 1/8 scale on or off-
road vehicles and 1/10 scale 4WD short course trucks up to 9lbs
(4.08kg) including batteries, ready-to-run

2650Kv Sensored Brushless Motor;
High strength neodymium sintered magnets with high strength Kevlar
wrap
High performance 0.2mm steel laminated stacked stator
Four pole configuration for maximum efficiency at high RPM
Vibration dampening wave spring
High-temperature, high purity copper windings
CNC machined 6061-T6 anodized aluminum can and endbells
Hardened stainless steel shaft
Low resistance gold-plated solder tabs
10AWG high strand count insulated wire with 6.5mm female bullet
connectors
Sensor board with temperature stabilized sensors

Mamba Monster 2 25V ESC;
Waterproof design allows running in nearly any environment (see
COMMENTS below)
Profiles can be custom designed on a PC with the Castle Link
PC programming software (software not included, can be
downloaded for free from Castle's website, voucher is included for
free Castle Link Programmer)
Solder posts allow battery wire length and direction to be easily
changed
One year limited warranty through Castle Creations beginning at date
of purchase. Warranty does not cover abuse, neglect, or damage due
to incorrect wiring, over voltage or overloading

Mamba Monster 2 Electronic Speed Controller with Cooling Fan
1515-2650kv Sensored Brushless Motor
Coupon for free Castle Link USB Adapter
Driver's Ed and Quick Start Guides
Castle Decal Sheet

ESC, CSEM0800;
Input Voltage: 2S-6S LiPo
BEC: Adjustable: User selectable between 5 and 7V, default 5.5V
Brake: Proportional
Revesible: Yes, may be disabled for racing
Cooling Fan: 1.2" (30mm) removable
Dimensions: 2.19 x 1.86 x 1.33" (56 x 47 x 34mm)
Weight: 3.93oz (111.5g) without battery connector

Motor, CSEC6100:
Kv: 2650
Input Voltage Range: 2S-4S LiPo
Max RPM: 60,000
Weight with Wires: 13.6oz (385g)
Mounting Hole Specifications: 3mm & 4mm screw holes @ 1" (25.4mm)
spacing
Motor Diameter: 1.6" (41.4mm)
Motor Length: 2.7" (67.7mm)
Shaft Diameter: 0.197" (5mm)
Shaft Length: 0.79" (20mm)
Connector: 6.5mm male bullets

Not intended for use while submerged in liquid. Fan on ESC is not
water resistant. Remove fan from ESC before exposing vehicle to
liquids.
