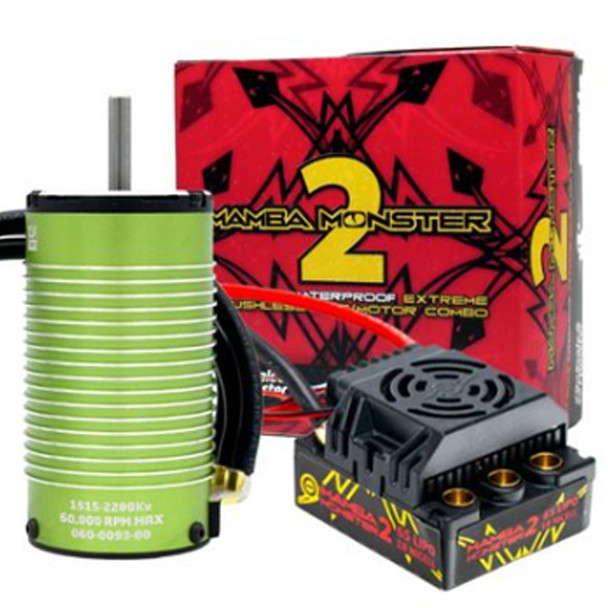

Castle Creations V2 Monster 2 1/8 25V ESC & 2200Kv Motor Combo 010-0108-05

Brute Power and Sheer Stamina!

Castle Creations' introduction of the Mamba Monster was a break-through moment for R/C modelers wanting to experience what seemed to be unobtainable. Brute power and sheer stamina have made this our legacy “power up” for popular 1/8th scale buggies, truggies and on road vehicles and 1/10th scale monster trucks.

The Mamba Monster 2 ESC is capable of 2S LiPo to a maximum of 6S LiPo and is waterproof, which means you can run your vehicle through the morning dew, across the soggy snow or just about anywhere else you’d be interested in running a 1/8th scale RC buggy or truck.

Industry Leading Software Functions

The Mamba Monster 2 includes a coupon for a free Castle Link USB device. This allows access to the full programming suite of adjustable settings that tune and tweak your vehicle to your preferences, resulting in an incredible RC driving experience.

ESC Features:


Adjustable Internal BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Factory equipped (30mm), fully removable cooling fan
Waterproof design allows for use in nearly any environment
LED error codes for common error conditions
Convenient transmitter programming for nine common adjustable settings
Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
Proudly Designed, Assembled and Supported in Olathe, KS USA
Backed by Castle Creations' 1 YR WARRANTY
Powerful Combination
This combo includes the Mamba Monster 2 controller and the recently updated Castle 1515-2200Kv V2 sensored* motor, which features:

Input Voltage range: 2s-6s LiPo
Redesigned rotor and stator assemblies.
Reduced magnetic cogging, producing less residual drag brake.
Increased efficiency, resulting in lower temperatures and longer run times.
Smoother start-up, reducing cogging or stuttering when starting from a stop.
Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly. (see note below)
High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
High-Performance 0.2mm Steel Lamination Stacked Stator
Oversized, low-resistance, gold-plated solder tabs
Sensor board with High Quality Temperature-Stabilized Sensors
T6 Aluminum CNC Machines Front/Rear End bell
Proudly Designed and Supported in Kansas, USA.
Backed by Castle Creations' 1-YEAR WARRANTY
Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.

ESC and Motor Package Includes:
Mamba Monster 2 ESC
1515-2200kv V2 sensored* brushless motor
Coupon for free Castle Link USB adapter
Driver's Ed and Quick Start Guide
Decal sheet

Technical Specs
Controller:
Input Voltage Range: MIN: 2S LiPo
MAX: 6S LiPo (25.2V)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof design allows for use in nearly any environment. Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size: Length: 2.09" (53mm)
Width: 1.93" (49mm)
Height: 1.44" (36.4mm)
Weight (with no battery connector): 3.92 oz. (111.g)
Connectors: 6.5mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required; Deans Ultra Plugs, Traxxas Power Connectors, E-Flite EC5, or 6.5mm Castle Connectors are recommended.
Product Use Statements: *Although Mamba Monster 2 and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Application Guidelines: Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 15 lbs, with batteries, ready-to-run.
Not recommended for use in high speed 1/8th and larger applications (IE Arrma Infraction and Limitless, Traxxas XO-1)
Recommended Motors: Combo includes Castle 1515 2200Kv V2: Max Cells: 6s Lipo or 16 NiMH
Max. Recommended Vehicle Weight: Less than 15 lbs, with batteries, ready-to-run
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Link included) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Device.
Telemetry Link Capable: No

Tech Notes:
Mamba Monster setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
Our experience  suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
Applying voltages higher than 25.2V will cause irreparable damage to ESC.
We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our CCBULLET 6.5mm, Castle 6.5mm Polarized Connectors, Traxxas® Power Connectors, FlightPower Star™ Plug, or Deans® Ultra Plugs
Motor:
Input Voltage Range: MIN: 2S LiPo; MAX: 6S LiPo (see Application Guidelines below)
Kv: 2200
Max. RPM: 60,000
Motor Size: Length: 2.96" (75.18mm)
Diameter: 1.57" (39.98mm)
Shaft size: Diameter: 5mm, Length: 20mm
Weight (w/wires): 15 oz. (452.2g); 380g without wires.
Mounting Hole Specifications: 3mm and 4mm screw holes @ 1" (25.4mm) spacing.
Cooling Fan:
No, but available as optional accessory
Connectors: 6.5mm male bullets.
Items Needed for Operation: N/A
Product Use Statements: N/A
Application Guidelines: The ESC and motor are intended for up to 6S (25.2 Volt) operation. Incredible in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in 1/8th buggies and truggies and on road as well. (vehicle weight limit is 15 lbs or less, with batteries ready-to-run).
Max. Recommended Vehicle Weight: 15 lbs (with batteries, ready to run)
Tech Notes: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.

Water Resistant Design: Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
